2[f]

Description

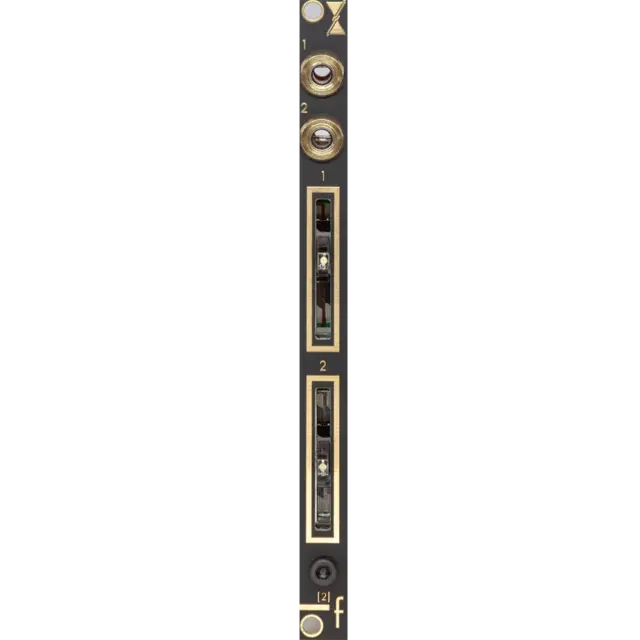

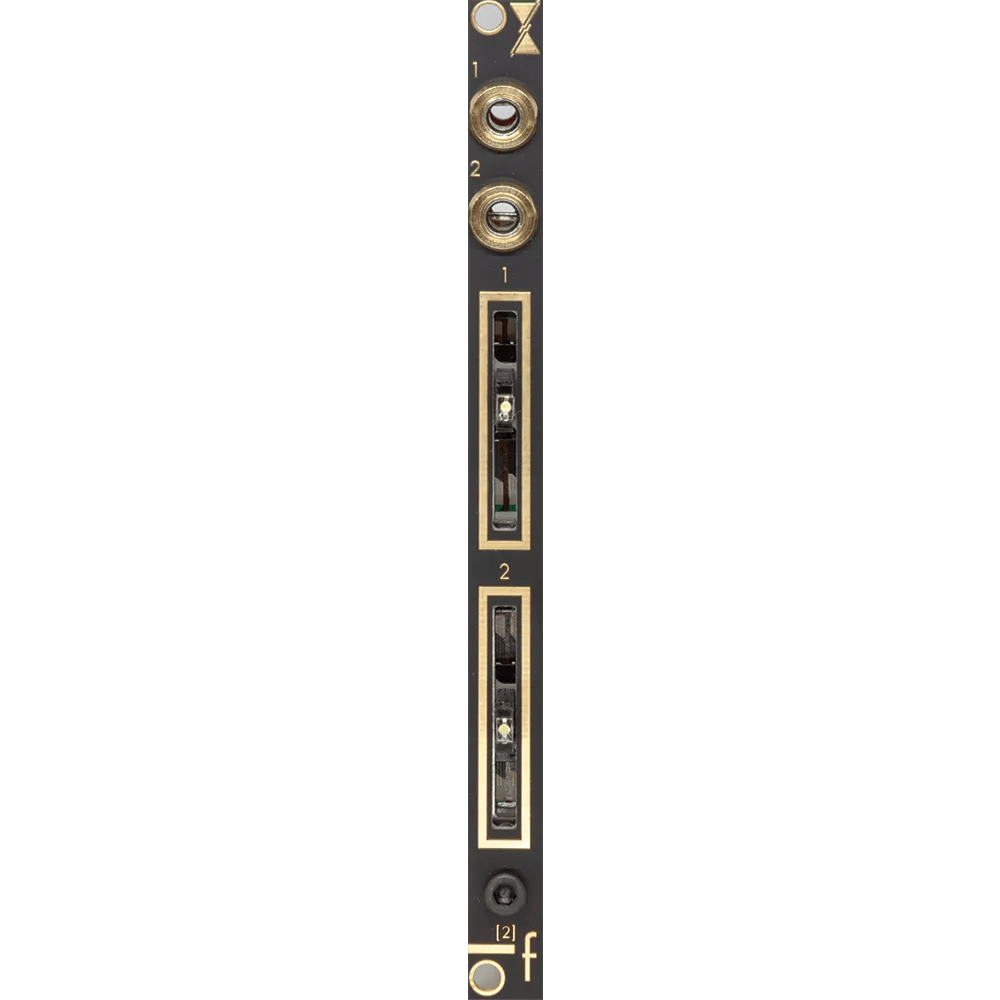

Faders are oft considered a superior interface. The [2]f module gives you two manual faders providing linear uni-polar positive output control voltages, 0–5V or 0–10V defined using the jumpers on the back.

[2]f | [2]Ef | noun (utility) because two is one, and one is none

Size

2HP
Depth: 27mm

Power

+12V: 7mA
–12V: 7mA

Features

Two manual controlled CV
0–5V or 0–10V ranges
