4 Zone CV Bus Case

Description

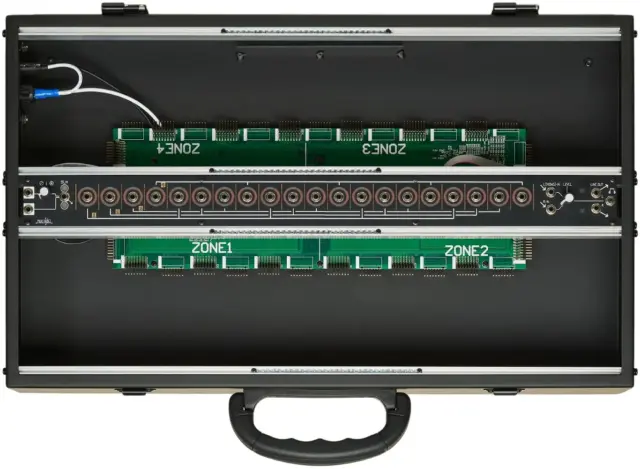

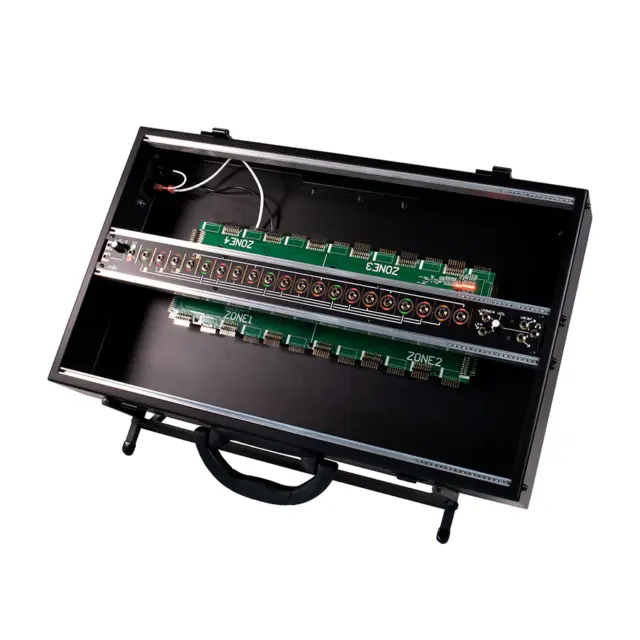

Make Noise 4 Zone CV Bus Case: The Professional Foundation for Eurorack

The Make Noise 4 Zone CV Bus Case is much more than a simple enclosure; it is the command center of your Eurorack ecosystem. This 7U case provides two rows of 104HP for your modules, paired with a central “CV Bus” that streamlines signal paths and provides vital visual feedback. By introducing four independent power zones, the case minimizes interference and crosstalk between digital and analog modules, ensuring an exceptionally low noise floor. Its rugged metal construction and included travel lid make it the gold standard for both high-end studio work and international touring.

Key Features:

• Four Independent Power Zones: Segments the power distribution to isolate noisy digital modules from sensitive analog circuits.

• Integrated CV Bus: Provides color-coded visual monitoring of signals and a central hub for distributing master clocks and control voltages.

• Massive Power Capacity: High-output internal bus boards designed to handle the most current-heavy modular configurations.

• Performance Ready: Includes a removable lid deep enough to close the case while fully patched, facilitating fast setup and teardown.

• Onboard Utilities: Features integrated 1/4″ TRS output jacks and pre-wired signal attenuators within the 1U bus strip.

Technical Specifications:

• Format: 7U (Two 3U rows for modules, one 1U row for the CV Bus)

• Width: 104HP per row (208HP total module space)

• Power Output: +12V @ 4A, -12V @ 2.4A, +5V @ 1A

• Construction: Black anodized aluminum with classic wood side panels

• Included: Global power brick and a set of sliding M3 nuts/screws
