4U Palette Cases 4U x 62HP / 104HP
449.00 €
Description
Palette 62HP Features
- One 62 hp row of Eurorack (3U) module space.
- One 62 hp row of Intellijel (1U) module space.
- Built in dual buffered multiple with bi-polar led level indicators.
- Expansion jacks for MIDI and balanced audio i/o.
- Threaded M3 strips for mounting modules.
- High spec 40 Watt power supply capable of powering up to 12 modules with +12 V output at 1200 mA, -12 V output at 1200 mA and +5 V output at 500 mA.

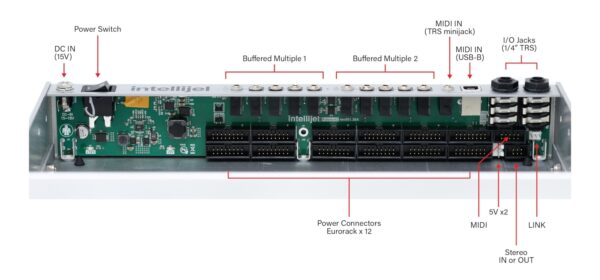

Utilities Row
- Dual 1:4 buffered multiple.
- Two 1/4″ balanced audio jacks that can be connected to the Stereo Line Out 1U, Stereo Line In 1U, Pedal I/O 1U or Mixup.
- ⅛” (3.5mm) MIDI Input that can be connected to MIDI 1U.
- USB port that connects to the MIDI 1U and other future modules.
- Rocker switch and barrel plug for power entry.
Palette 104HP Features
- One 104 hp row of Eurorack (3U) module space.
- One 104 hp row of Intellijel (1U) module space.
- Built in triple buffered multiple with bi-polar led level indicators.
- Built in dual precision summers with bi-polar led level indicators.
- Expansion jacks for MIDI and balanced audio i/o.
- Threaded M3 strips for mounting modules.
- High spec 60 Watt power supply capable of powering up to 24 modules with +12 V output at 1500 mA, -12 V output at 1500 mA and +5 V output at 500 mA.
Utilities Row
- Triple 1:4 buffered multiple.
- Dual 2:1 precision summer.
- Four 1/4″ balanced audio jacks that can be connected to the Stereo Line Out 1U, Stereo Line In 1U, Pedal I/O 1U or Mixup.
- ⅛” (3.5mm) MIDI Input that can be connected to MIDI 1U.
- ⅛” (3.5mm) MIDI Output that can be connected to MIDI 1U.
- USB port that connects to the MIDI 1U and other future modules.
- Rocker switch and barrel plug for power entry.
Construction
- Anodized aluminum.
- Aluminum extruded rails with steel threaded inserts
- Rubber feet to protect your desktop.
- Rear mounted power supply for maximum module depth

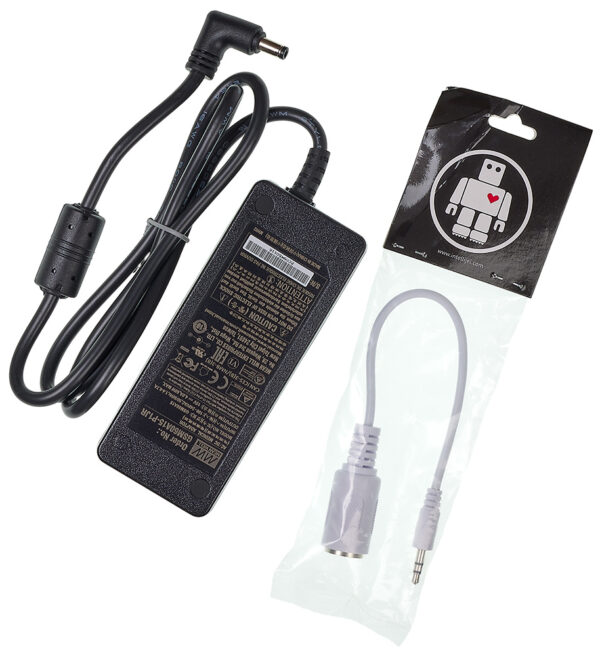

In the Box
- 1 x Meanwell AC/DC adapter with right angled connector (40W for 62HP, 60W for 104HP)
- 1 x 3FT North American IEC power cable
- 1 x ⅛” (6.35mm) TRS to 5-Pin DIN MIDI Adaptor
Additional Information
About the brand
Additional Information
| Weight | 6001 lbs |
|---|
