6301NE

Description

Compact Powered Studio Monitor with Balanced XLR Input

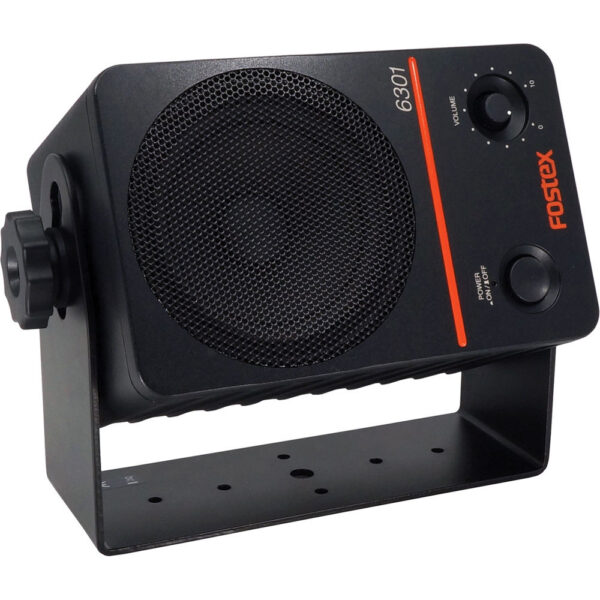

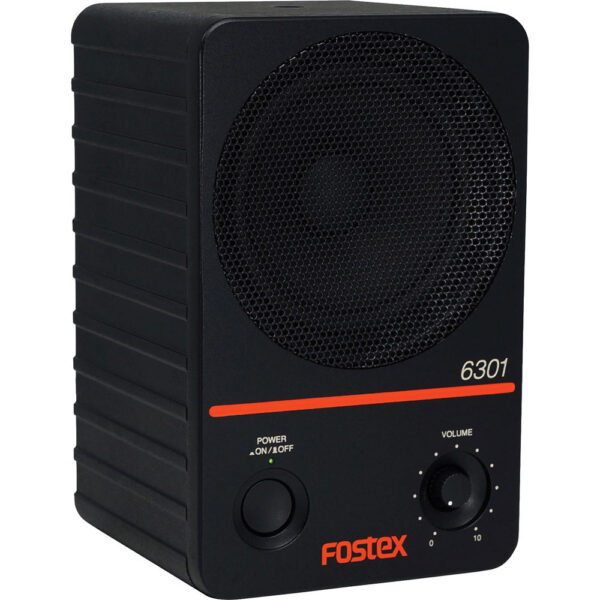

The Fostex 6301NE is a compact, rugged active monitor designed for professional mobile, project, and home studios. It features a 4″ full-range driver driven by an integrated 20W Class-D amplifier that delivers clear, balanced sound across 70 Hz to 15 kHz.

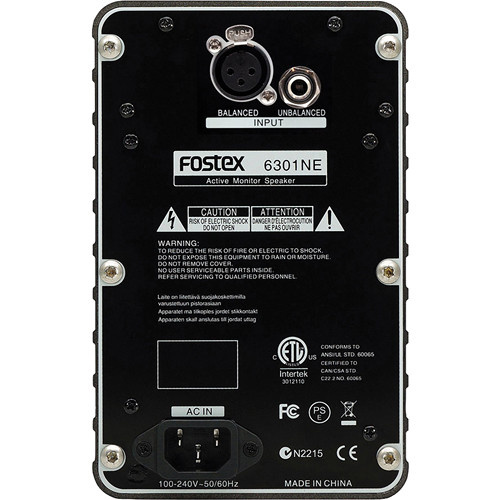

Inputs include an electronically balanced XLR and a 1/4″ unbalanced connector, ensuring versatile connectivity. The front panel offers a power switch and a rotary volume control for easy adjustments.

Durability is assured with a die-cast aluminum enclosure built to withstand demanding use. Protection circuitry prevents overloads and short circuits, while magnetic shielding allows safe placement near video monitors. A multi-voltage power supply enables worldwide use, and an Auto Standby Mode reduces power consumption to 0.5W after 25 minutes of inactivity.

Key Features

• Compact die-cast aluminum design

• 4″ full-range driver

• 20W Class-D amplifier

• Electronically balanced XLR input

• 1/4″ unbalanced input

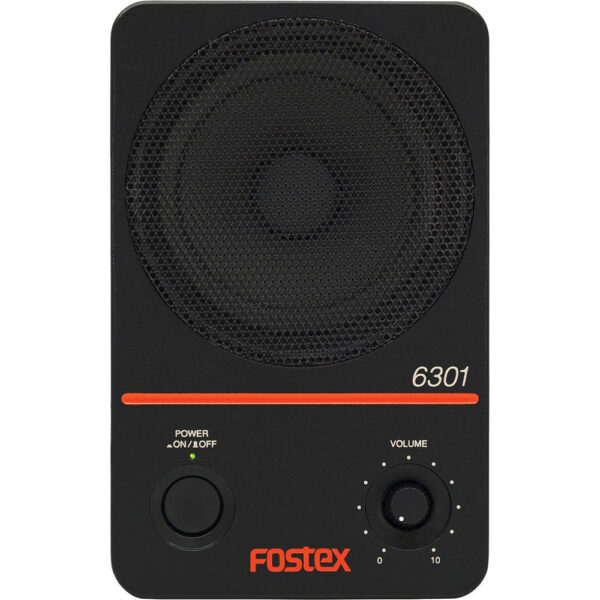

• Front-panel power switch and rotary volume control

• Protection circuitry for overload and short circuit prevention

• Magnetically shielded for video monitor safety

• Multi-voltage power supply

• Auto Standby Mode reduces power to 0.5W after 25 minutes

Technical Specifications

• Amplifier: 20W Class-D

• Driver: 4″ / 102 mm full-range cone

• Frequency Range: 70 Hz – 15 kHz

• Max SPL: 98 dB

• Input Impedance: ≥10 kOhms

• Input Sensitivity: -14 dBV (unbalanced), +4 dBu (balanced)

• THD: 0.05% (1 kHz, 1W)

• Enclosure: Aluminum die-cast

• Power Consumption: 10W (0.5W standby)

• Dimensions (H x W x D): 189 x 120 x 120 mm

• Weight: 2.2 kg

Applications

• Mobile and project studios

• Home studios

• Analog and digital mixing environments

• Video post-production

• Broadcast
