A-125 Voltage Controlled Phase Shifter

Description

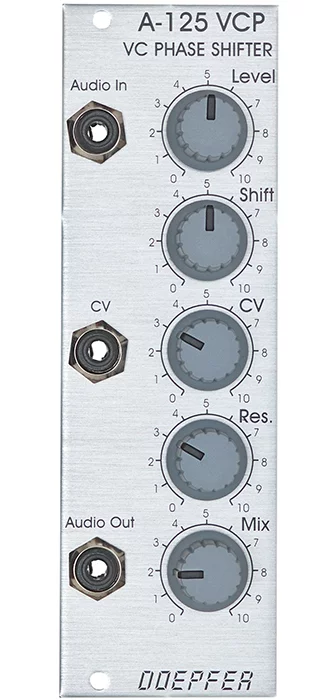

Doepfer A-125 Voltage Controlled Phase Shifter – Smooth Analog Modulation

The Doepfer A-125 is an analog voltage-controlled phase shifter module for Eurorack systems. With three internal phase shift stages and CV control, it produces warm, dynamic phase shifting ideal for evolving textures and movement in your patches.

Key Features:

• Analog voltage-controlled phase shifter

• Three internal phase shift stages

• CV input for controlling the phase

• Manual phase control knob

• Built-in Mix knob for dry/wet balance

Technical Specifications:

• Width: 8 HP

• Depth: 55 mm

• Power consumption: +12V: 20 mA / -12V: 20 mA

• CV inputs: 1

• Audio I/O: 1 input, 1 output

• Mix output available
