Aeolus Mixer

Description

AM-Building_Guide.pdf

Compact, quadraphonic mixing with 5.1 compatibility — the Aeolus Mixer is the perfect spatial audio utility for immersive setups.

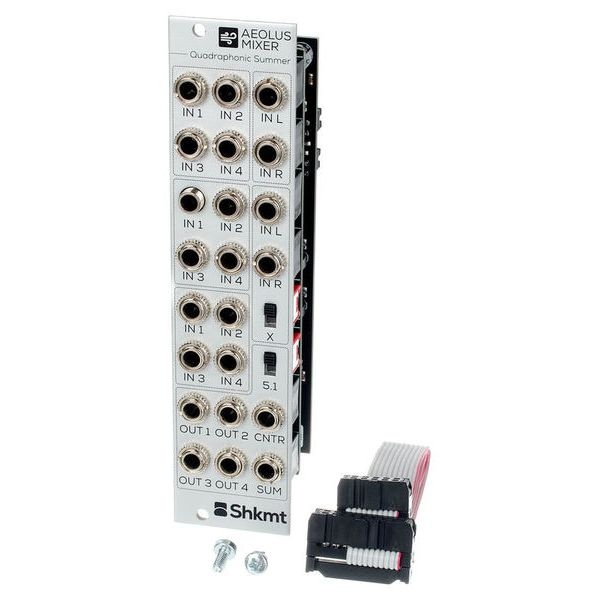

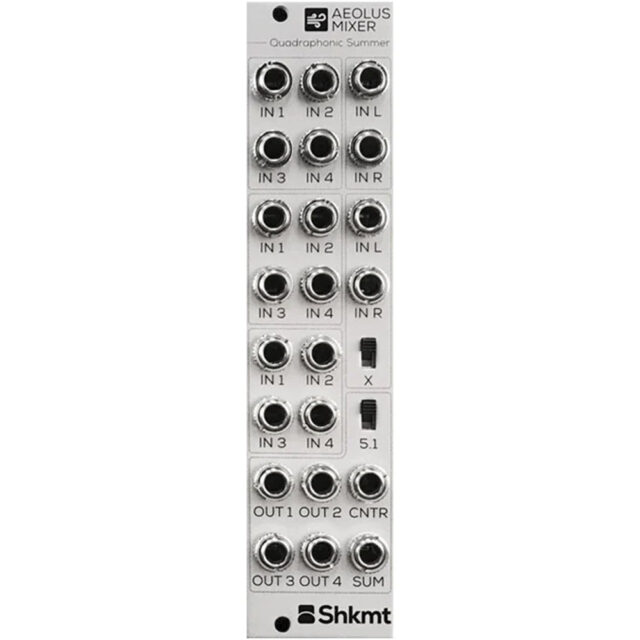

The Aeolus Mixer is a 6HP quadraphonic unity mixer designed to seamlessly merge multiple spatial audio sources. It features three quadraphonic inputs with mono/stereo normalization and two stereo inputs, including one with a stereo cross-switch for dynamic placement in the quad field.

The module’s center and sum outputs add 5.1 surround compatibility, making it ideal for modern immersive sound applications. Internal jumpers allow for gain reduction, enabling greater flexibility in gain staging and system integration.

Key Features

• Quadraphonic unity mixer in a compact 6HP form

• 3 quadraphonic inputs with mono and stereo normalization

• 2 stereo inputs with mono normalization

• Stereo cross-switch on second stereo input for spatial modulation

• 5.1-compatible output configuration with additional center and sum outs

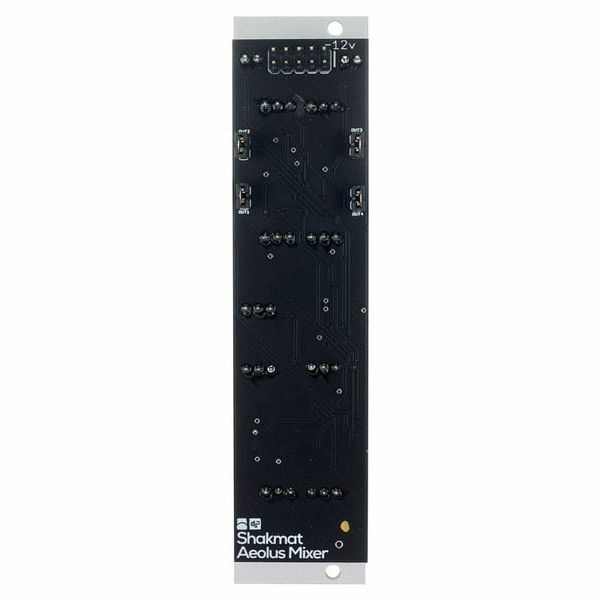

• Rear jumpers for optional gain reduction

• Skiff friendly design

Technical Specifications

• Width: 6HP

• Depth: 40mm

• Power Consumption:

  • +12V: 20mA

  • -12V: 20mA

Applications

• Mixing quadraphonic and stereo sources in spatial audio environments

• Preparing content for 5.1 surround systems

• Live and studio use with immersive multichannel setups

• Integrating spatial audio utilities in compact Eurorack systems

• Creative spatial placement with cross-switching capabilities

Versions Available

• Assembled module

• DIY kit version
