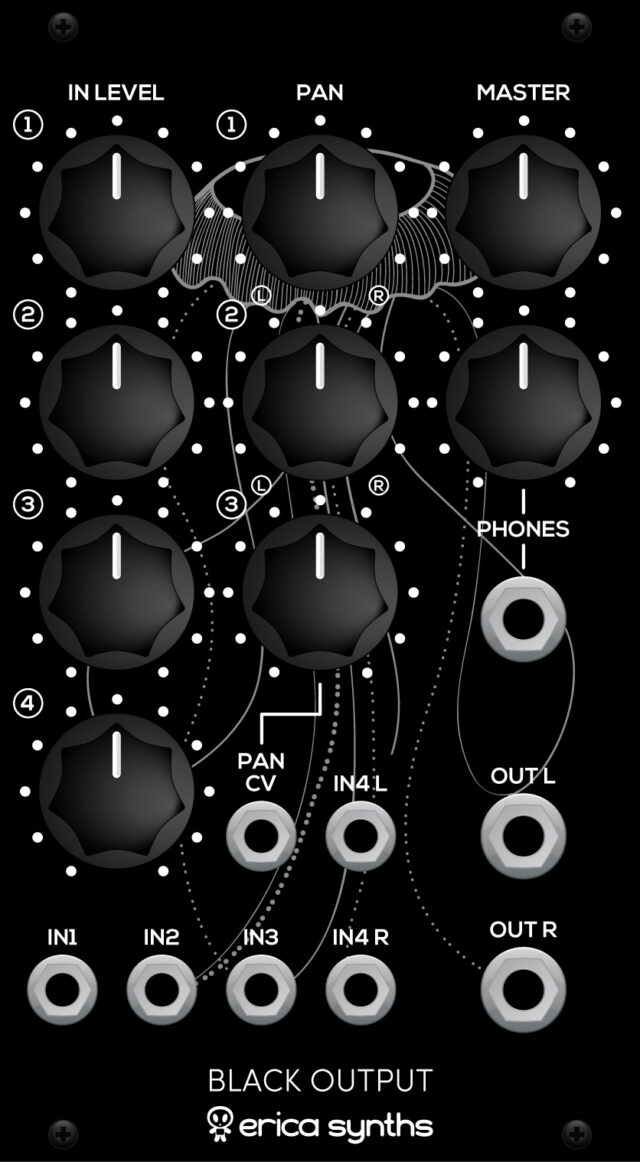

Black Output v2

Description

All inputs are buffered, we use stereo potentiometers (similar to those used  in high quality studio mixers) for panning, IN4 is a stereo input with simultaneous level adjustment for both channels, IN3 has a CV controlled autopan function. There is also a 6.3mm jack for the balanced outputs and headphones.

Technical specifications:

Input signal level – -10V, +10V

Pan CV Input signal level – -10V, +10V

Phone amp out power – 100mW

Power consumption – +52mA, -43mA

Module width – 14HP

Module depth – 35mm
