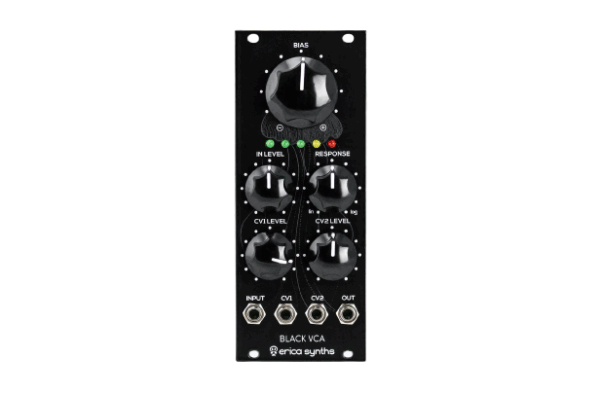

Black VCA V2
Description
Features
- Manual bias control
- Manual fading between linear and logarithmic response
- Two CV inputs
- Output level indicator bargraph
Smooth fading between linear and logarithmic response allows you to create versatile percussion sounds. LED bargraph gives visual feedback on the output level.
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.
Technical specifications:
|
CV level |
-10V – +10V |
|
Attenuation level: |
|
|
CV = 0V (max attenuation) |
-80dB |
|
CV = +10V (unity gain) |
0dB |
|
Power consumption |
+45mA, -32mA |
|
Module width |
10HP |
|
Module depth |
25mm |
Additional Information
| Weight | 3000 lbs |
|---|
