BLCK_Shuttle System

Description

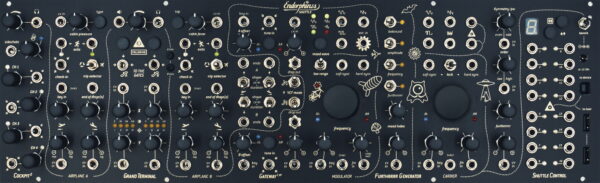

ENDORPHIN.ES SHUTTLE is a unique performance instrument containing 5 Eurorack modules under single 84hp faceplate:

• Shuttle Control: 16 channel USB to MIDI to CV interface with almost infinite possibilities interpreting MIDI events into analogue control voltages—including CV/Gate, random or noise generators, MIDI or tap-clocks, utility LFOs and envelopes

• Furthrrrrr Generator: dual triangle-core VCO with a waveshaper

• Grand Terminal: dual voltage controlled gate with 8 resonant filter modes (ladder, diode, lpg, state variable, comb), dual envelope generators (voltage controlled) with looping/AD/ASR with arbitrary voltage to control slope shapes: from EXP to LIN to LOG without stretching the length of a certain slope, Cabin Pressure audio FX processor with 8 selected effects

• Cockpit 2: 4 stereo channel mixer with sidechain ducking

• Gateway: dual 1+1 utility mixer and auto-tuners to scale, offset and invert voltages

• comes with Shuttle Cover included


  Power consumption:

• 710 mA +12V

• 500 mA -12V

• 0 mA 5V



  Dimensions:

• 84 HP

• 42 mm deep

More information you can find here: Shuttle System Black
