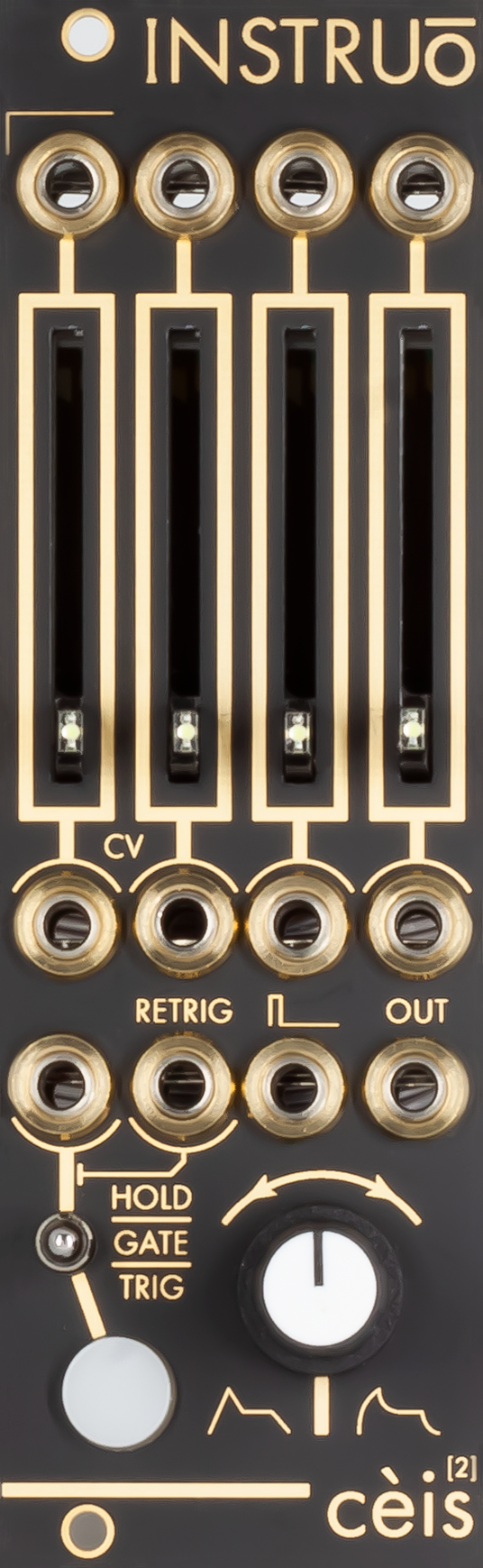

Cèis2
Description
The Instruō cèis[2] is a fully analogue voltage-controlled ADSR envelope generator. The ADSR function generator is the model pioneered by the
East-coast mindset and is extensively used in subtractive synthesis patches. The cèis[2] gives the ability to externally control the attack, decay, sustain, and release stages of the envelope while also emitting trigger and gate signals for each segment, offering maximum versatility from a classic tool.
This version[2] revision brings additional flexibility and control through a completely redesigned logic extraction circuit for the segment gates,
envelope re-trigger input, and a precision throughput for voltage-controlled slew limiter capabilities.
cèis | siːs | noun (envelope) a containing structure or layer, a curve joining the successive peaks of a modulated wave
Size
8HP
Depth: 27mm
Power
+12V: 70mA
–12V: 40mA
Features
- LED button for manual control and indication of output CV level
- Fader and CV control over all 4 segments
- Gate output per segment
- LED faders for indicating segment stage when in use
- Gate/Trig modes which can force completion of the Attack duration when triggered
- Hold mode for sustain segment lock for CV slew use
- Combined trigger output which fires when there is a change in segment
- Variable envelope response shape from linear to exponential
