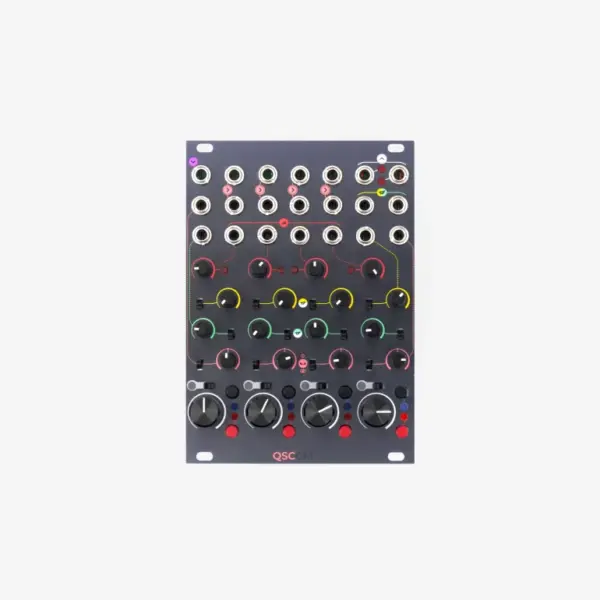

CGM Creative Mixer QSC – Quad Stereo Channel
Description
The Quad Stereo Channel (QSC) consists of four stereo channels, with a design based on the Channel module that, however, also borrows some concepts from the Group and the Master modules. The color scheme reflects the same routing of the modules: VCA (red), two effect sends (yellow and green), pan (pink), auxiliary input (purple), and main faders (white).
This peculiar feature set allows you to use the QSC within a standard CGM configuration, or as a standalone stereo mixer with mono effect sends.
|
Size |
18 HP |
|
Depth
|
38 mm
|
|
Current draw |
170 mA @ +12 V 170 mA @ -12 V |
|
Recommended warmup time |
30 min |
|
Audio input impedance
|
> 10 KΩ (mono)
> 20 KΩ (stereo)
|
|
Aux input impedance |
10 KΩ
|
|
Local output impedance
|
≥100 Ω
|
|
CV Input impedance |
> 90 KΩ
|
|
Maximum output level before clipping |
≥ 17 dBu |
|
Local output gain scale |
8 dB |
|
Local send output gain scale |
8 dB |
|
Send to G/G (2016) gain scale |
8 dB |
|
Frequency response |
0.01 to 40 KHz
|
|
Harmonic distortion |
< 0.3 %
|
|
Panpot center position tolerance |
< 1.5 dB
|
|
Max VCA attenuation |
≤ 70 dB |
Manual you can find here: MANUAL
