Description
Craft your sound

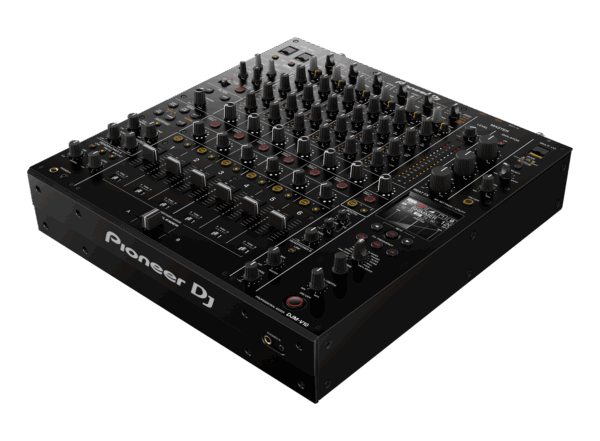

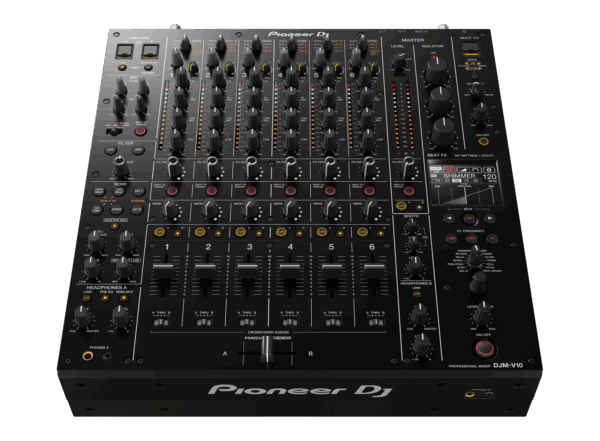

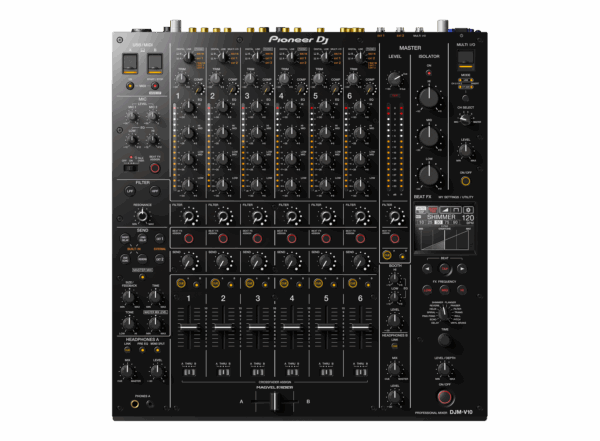

Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes. This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. Take full control of your mix and get ready to create something the crowd has never heard before.
Elite sound quality
Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to produce a full low-end, vibrant mids, and precise highs.
6 channels with a wide range of inputs
You’re free to create your perfect setup with 6 channels and a host of different input types.
MIDI Control
|
Full assignable MIDI controls |
DVS Control
|
- rekordbox
- Serato DJ Pro
- TRAKTOR PRO 3
|
Accessories
|
- DJM-V10
- Power Cord
- Warranty (for some regions)
- Quick Start Guide
- Precautions for Use
|
Width
|
437.6 mm |
Sampling Rate
|
96 kHz |
Height
|
107.9 mm |
Depth
|
467 mm |
A/D Converter
|
32 bit |
Weight
|
11.9 kg |
D/A Converter
|
32 bit |
S/N Ratio Line
|
105 dB |
S/N Ratio Phono
|
88 dB |
S/N Ratio Mic
|
79 dB |
Channels
|
6 |
Filter
|
|
SEND
|
- Short Delay
- Long Delay
- Dub Echo
- Reverb
- 2 Externals (1/4-inch TS jack)
|
MULTI I/O
|
- 1/4-inch jack
- USB (Type A)
|
Beat FX
|
- Delay
- Echo
- Ping Pong
- Spiral
- Helix
- Reverb
- Shimmer
- Flanger
- Phaser
- Filter
- Trans
- Roll
- Pitch
- Vinyl Brake
|
Mic Connection
|
- XLR / 1/4-inch Combo Jack
- 1/4-inch TRS Jack
|

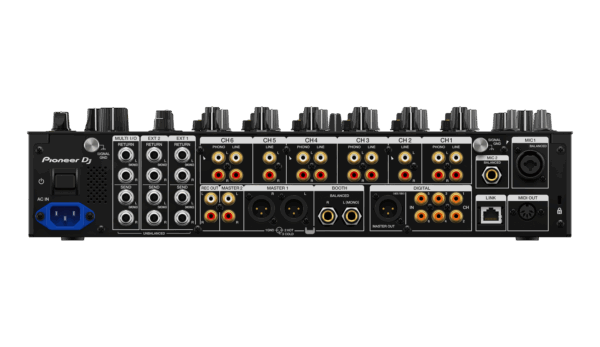

Inputs
|
- 6 DIGITAL (Coaxial)
- 6 LINE (RCA)
- 4 PHONO (RCA)
|
Send/Return
|
- 3 SEND (1/4-inch TS jack)
- 3 RETURN (1/4-inch TS jack)
|
LAN
|
1 |
Outputs
|
- 2 MASTER (XLR, RCA)
- 1 BOOTH (1/4 inch TRS Jack)
- 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
- 1 REC OUT (RCA)
- 1 DIGITAL (AES/EBU)
- 1 MIDI (DIN)
|
USB
|
- 2 USB B ports
- 1 USB A port
|
* The specifications and design of this product are subject to change without notice.
