EF-P2

Description

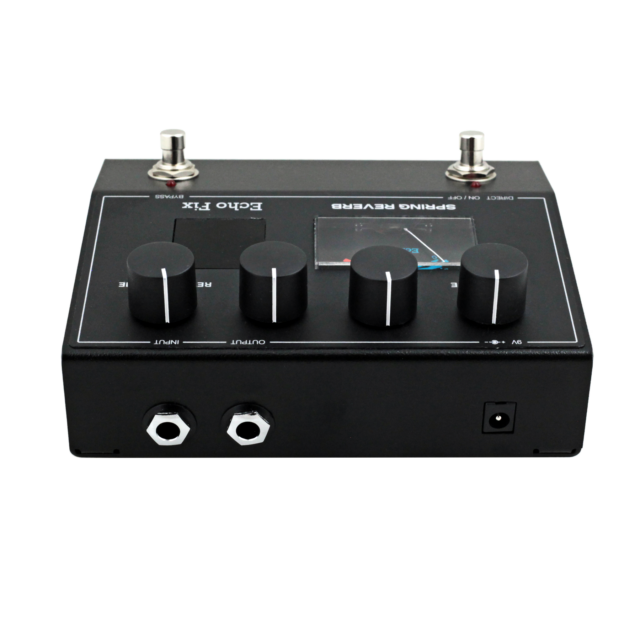

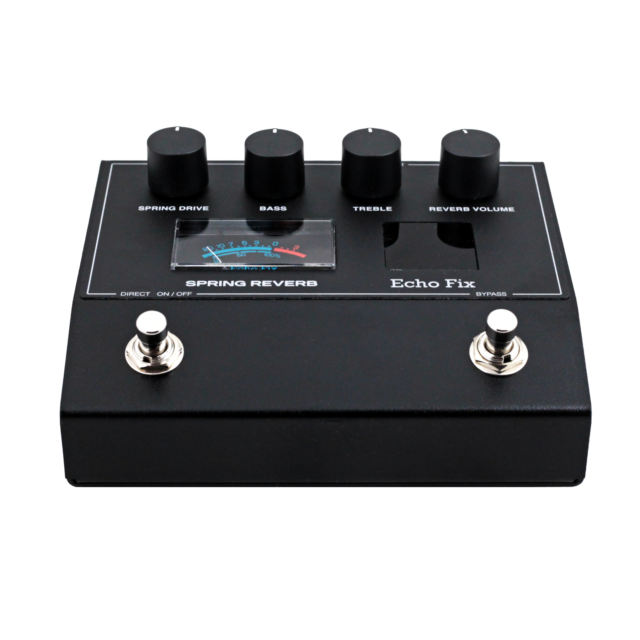

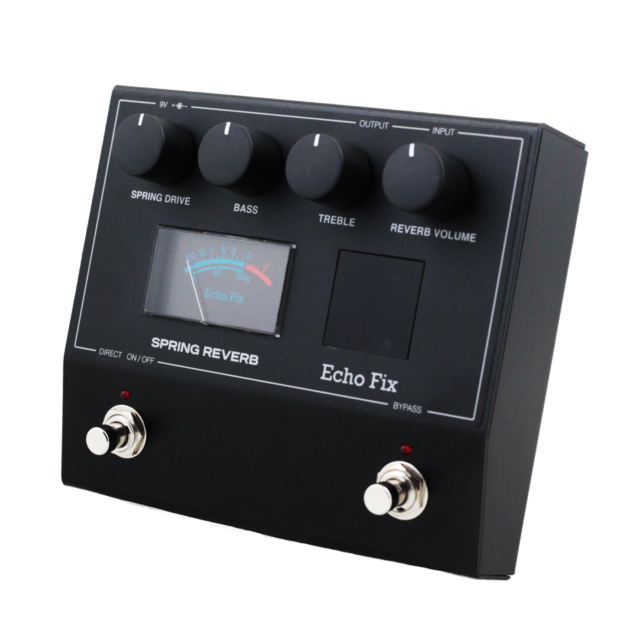

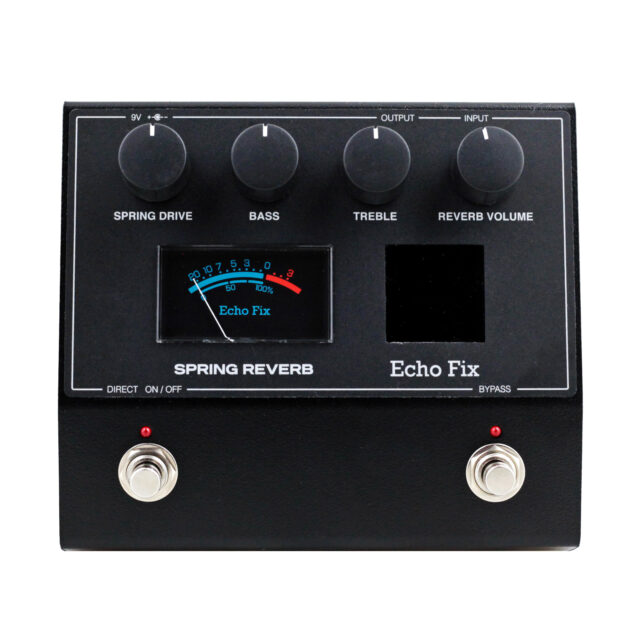

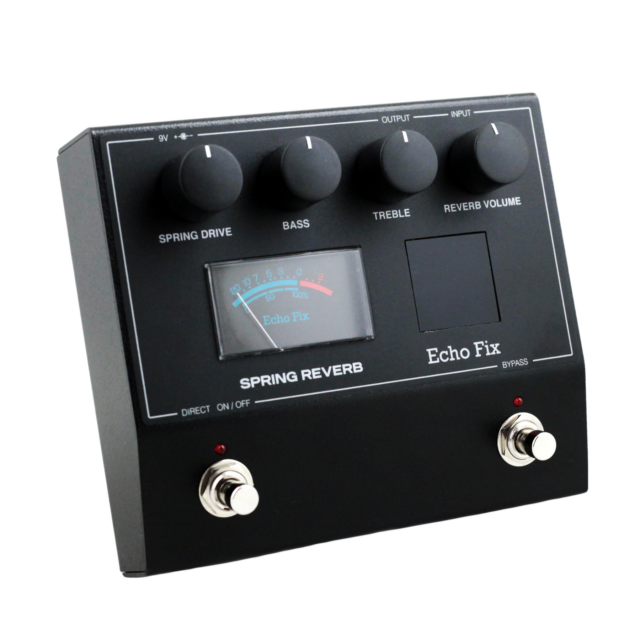

The Echo Fix EF-P2 is a real Spring Reverb pedal that packs a huge sound into a small enclosure.

Boasting a 100% analog signal path, this pedal delivers a classic, warm, ambient reverb effect, and would be a valuable addition to any effect arsenal.

The EF-P2 features a three-spring reverb tank, adjustable Spring Drive, Bass / Treble EQ controls, and Reverb Volume control.

With a footswitch for reverb bypass and also a direct signal mute footswitch, the EF-P2 can also be used as an outboard effect in recording studios.

With increased voltage rails for studio use, the EF-P2 can accept line level inputs from synths and other audio devices, not just guitar.

The Echo Fix EF-P2 Spring Reverb Pedal is a must-have for any musician looking to add more depth and atmosphere to their sound.

Features:

– Real spring reverb pan

– Spring drive control

– Spring drive control

– Treble control

– Reverb Level Control

– Soft momentary switching for noiseless
Bypass and Direct Mute switching

– Increased internal power supply voltage
rails for increased dynamic range

– Illuminated reverb tank viewing window

Power – 9VDC Centre Negative
Current – 200mA minimum
Input Impedance – 1MΩ
Output Impedance – 1KΩ
Dimensions – 160mm x 130mm x 60mm (6.29″ x 5.11″ x 2.36″)
