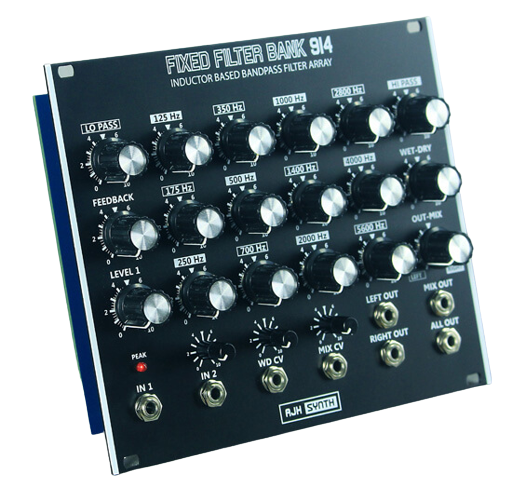

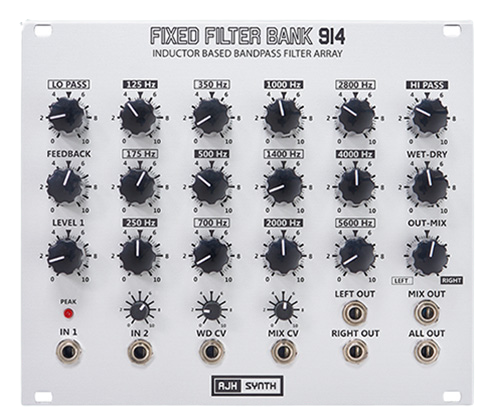

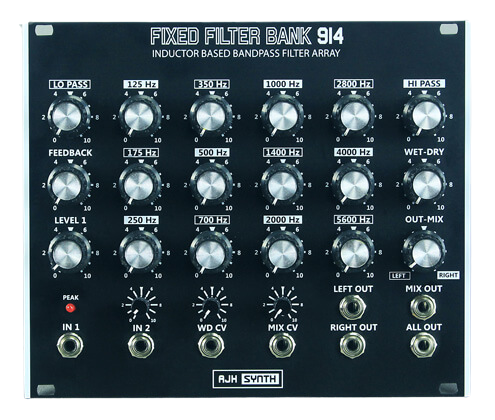

FFB914 Fixed Filter Bank
Description
Fixed filter banks offer very useful sound sculpting and shaping in modular synthesiser systems. The new FFB914 features fourteen vintage style fixed frequency, inductor based filters. There is a LP and a HP shelf filter, along with twelve BP filters set at half octave interval spacings, which range from 125 Hz through to 5.8kHz.
The individual bands are split to left and right channels, with an inbuilt cross-fader which allows manual and Voltage Controlled panning between banks.
An additional Wet-Dry cross fader mixes between the treated signal and the dry or external signal , again with manual and Voltage Controlled panning between banks.
A feedback control is also included, this adds a resonance path, which is sourced from the Mix output.
More information you can find here: FFB914 Fixed Filter Bank
