16 scenes. 4 acts. Infinite modulation.

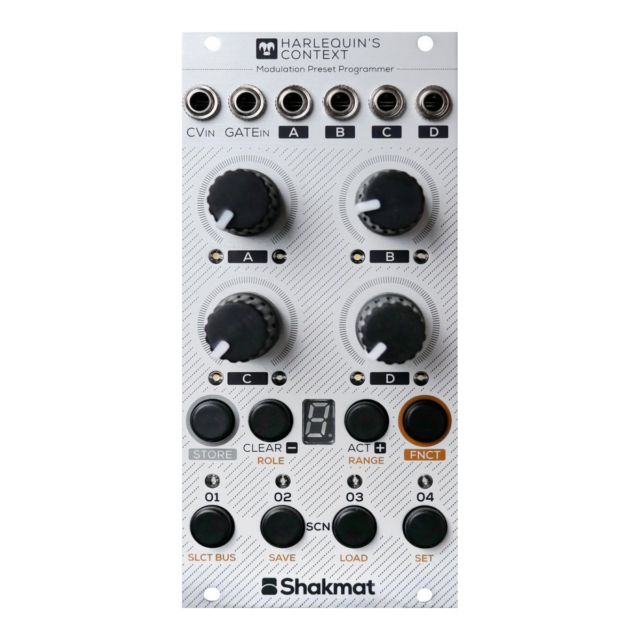

Harlequin’s Context by Shakmat is a powerful 4-channel modulation presetter packed into a versatile 12HP module. Built for performance and experimentation, it lets you craft and switch between 16 user scenes across 4 modulation outputs, each capable of operating as an LFO, envelope, random generator, offset, or serial modulator.

Scene changes can be done manually, or driven by CV and gate inputs using a flexible set system that defines how the module behaves. With 15 modulation types, morphing capability between modulation forms, and non-volatile memory, Harlequin’s Context is a unique tool for creating complex modulation environments on the fly.

Whether you’re designing wild patches in the studio or shaping your modulation live on stage, this module is a true shape-shifter.
Available as both an assembled module and a DIY kit.

Key Features

• Quad modulation output with 16 user-defined scenes

• Scene selection: manual, CV addressable, or clock-sequenced

• 15 modulation types: LFOs, envelopes, randoms, offsets, serial modulation

• 14 selectable sets defining input behaviour

• Morphing mode blends different modulation types

• Stores 16 scene slots in non-volatile memory

• Select bus compatible (send/receive)

• Skiff-friendly design

• Premium rubber-injected DJTechTools potentiometers

• Available assembled or as a DIY kit

Technical Specifications

• Width: 12HP

• Depth: 29mm

• Power consumption: +12V: 65mA / –12V: 10mA

Applications

• Live performance modulation control

• Studio modulation scene presets

• Complex automation and CV sequencing

• Morphing LFO/envelope/random sources

• CV-controlled scene switching for evolving patches

Shape your scenes. Shift your context.
