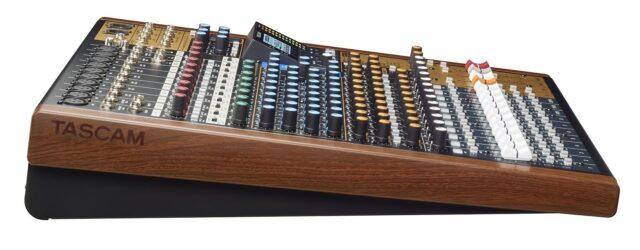

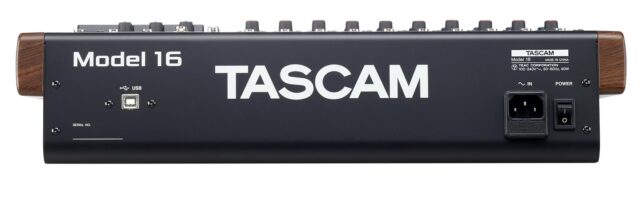

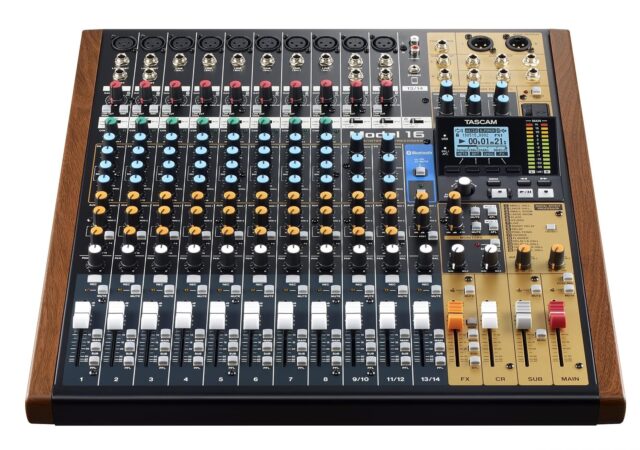

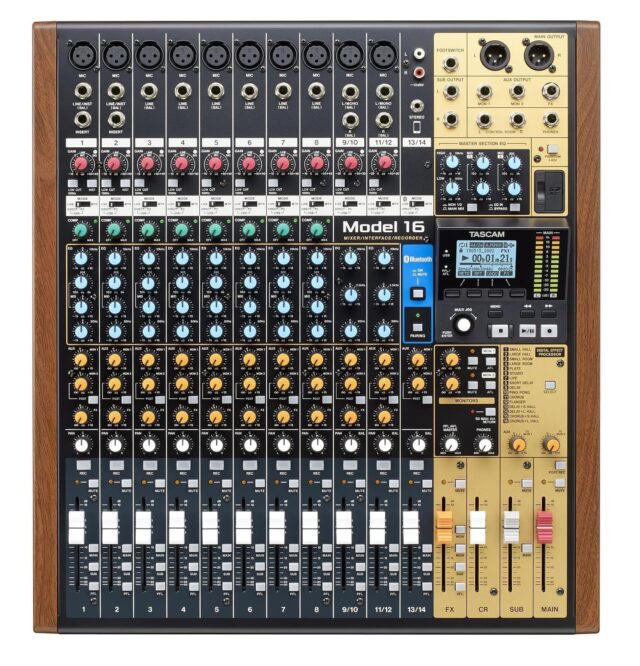

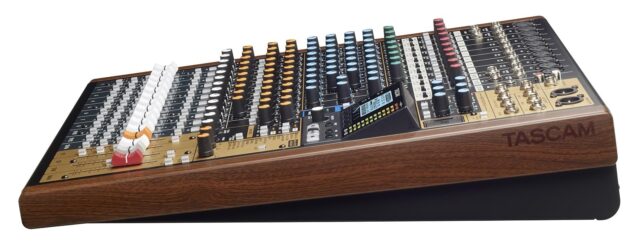

Model 16
849.00 €
Description
An all-in-one analogue mixer, multi-track digital recorder and audio interface
The Tascam Model 16 all-in-one mixer brings the flagship Model 24’s powerful recording and mixing features and functionality to a new level of compactness and affordability, creating a fully featured compact mixer that combines the warmth of analogue with a digital workflow. The Model 16 is the perfect mixing solution for small-format live performance, recording and production environments, featuring a multi-track recorder, USB audio interface, effects, comprehensive mixing and routing capabilities, and Bluetooth wireless.
With the Model 16, your perfect mix has met its match.
Features at a glance
- 14-channel analogue mixing console with built-in 16-channel multi-track recorder and USB audio interface
Mixer features
- 14 analogue inputs
- 10 Tascam Ultra-HDDA microphone preamps with switchable phantom power (48 V) on eight mono and two stereo channels
- 12 balanced line inputs (8 mono, 2 stereo)
- One multi-purpose stereo channel for input from mobile devices via Bluetooth or via RCA connectors or stereo mini-jack connector (CH 13/14)
- Inserts on input channels 1 and 2
- Channels 1 and 2 can be used with high-impedance instruments like electric guitars/basses
- Three Aux outputs (monitor 1 (pre fader), monitor 2 (pre/post fader), effects (post fader))
- Three stereo outputs with independent master faders (Main, Sub, Control Room)
- One-knob compressor for channels 1–8
- Switchable low-cut filter (100 Hz) for eight mono and two stereo channels
- Switchable Mute, Stereo/Sub routing and PFL on each input channel
- Three-band equalizer with sweepable mids for eight mono channels, fixed mids on stereo channels
- Semi-parametric EQ with two sweepable mid bands (wide/narrow) for stereo and sub outputs
- Built-in Bluetooth receiver for wireless playback
- On-board effects processor
- 16 effect types
- Can be used on all input channels, monitor buses, sub and main stereo bus
- Can be turned on/off by an optional footswitch (Tascam RC-1F)
- 60 mm faders on each channel
- 12-segment LED output level meters
- XLR balanced outputs for main stereo bus
- TRS balanced outputs for sub, control room, monitor 1/2 and effects send
- Headphones output with level control (80 mW per channel)
Recorder features
- Tascam multi-track recording engine
- Uses SD cards as recording media (up to 512 GB, Class 10 or higher required)
- Up to 16 tracks (14 input channels + stereo mix) can be recorded without the need for a computer
- Recording format: WAV (BWF), 44.1/48 kHz, 16/24 bit
- Playback format: WAV (BWF)
- Overdubbing, punch in/out recording (eight channels maximum)
- Multi-track playback for advanced live performance
- Illuminated Play/Record/Stop buttons for better legibility in poorly lit environments
Audio interface features
- USB 2.0 audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
- Transfer to computer: 16 channels (all 14 inputs + stereo mix)
- Transfer from computer: 14 channels, assignable to each channel input
- Audio resolution 44.1/48 kHz, 16/24 bit
Other features
- Simple and quick menu operation with multi-jog dial
- 19-inch rack installation possible (with optional rackmount kit)
- Internal power supply with removable power cord
