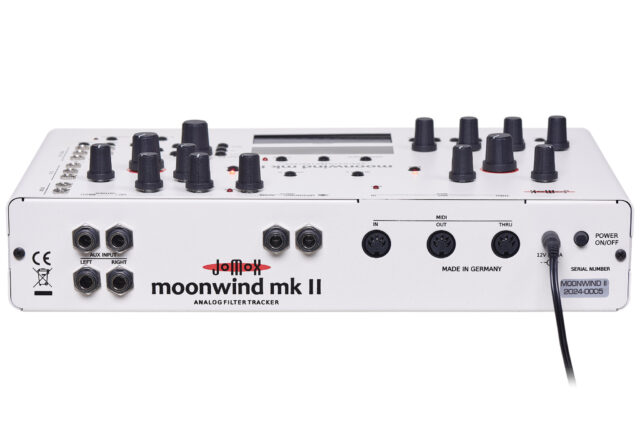

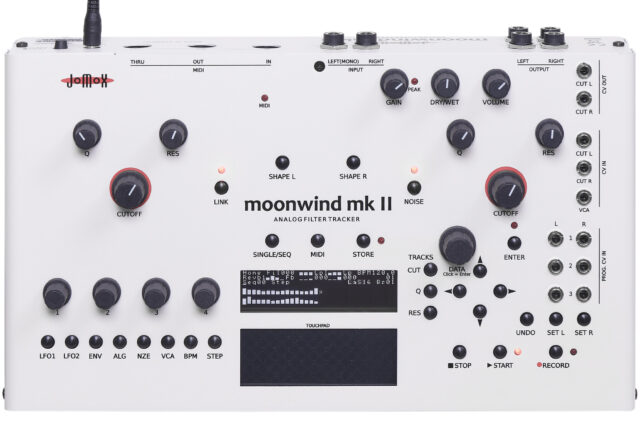

MoonWind MkII

Description

Analog Multimode Filter & FX Processor

A powerful hybrid filter and effects unit designed for musicians, sound designers, and live performers who want deep control and rich analog character. Combining two real analog low-noise multimode filters with an advanced sequencer, CV integration, and a digital effects engine, this machine offers endless creative possibilities.

Key Features

• Two real analog multimode filters (low-noise, OTA technology)

• Per filter: adjustable Q (bandwidth) and Resonance

• Assignable filter modes: Low-pass, High-pass, Band-pass, Notch

• Filters can be connected and routed together

• Per filter: 1 LFO (64 waveforms) modulating the cutoff

• Analog envelope follower generates envelope modulation from incoming audio

• 2 ADSR envelopes (filter + VCA), triggerable via MIDI

• Hi-Z inputs for direct connection of guitar or bass

Control & Modulation

• Touchpad for intuitive editing and real-time modulation

• 2 CV outputs

• 3 fixed CV inputs

• 6 programmable CV inputs (with adjustable amounts)

Digital FX Engine

• Onboard multi-algorithm effects chip with 15 programs

• Analog FX feedback for tape delay-style effects and waveguides

• 3 adjustable parameters per FX algorithm

• Programs include chorus, flanger, tremolo, reverb, delay, and more

• 8 additional FX programs loadable via OS update

• Built-in metallic noise generator with volume control

Sequencer

• Records Cutoff, Q, and Resonance per step and per filter

• Up to 64 steps per pattern

• Up to 32 steps per bar (max. 2 bars; dynamically adjustable)

• Clock divider up to 1/32 resolution

• Record/Undo for real-time knob/touchpad sequences

• Direct Touch mode: record with fingertip gestures

• Sequencer and LFOs sync via MIDI clock

• MIDI note input controls cutoff; MIDI CCs control all other parameters

Hardware & Build

• Classic potentiometers for Cutoff, Q, Resonance

• High-quality metal-shaft potentiometers and encoders with axle bearings

• 256×64 px LCD display

• OS updateable via MIDI

• Rugged, stable construction

Dimensions & Weight

• Width: 318 mm

• Depth: 180 mm

• Height (front): 44 mm

• Height (back): 72 mm

• Weight: 1.8 kg
