NT3

Description

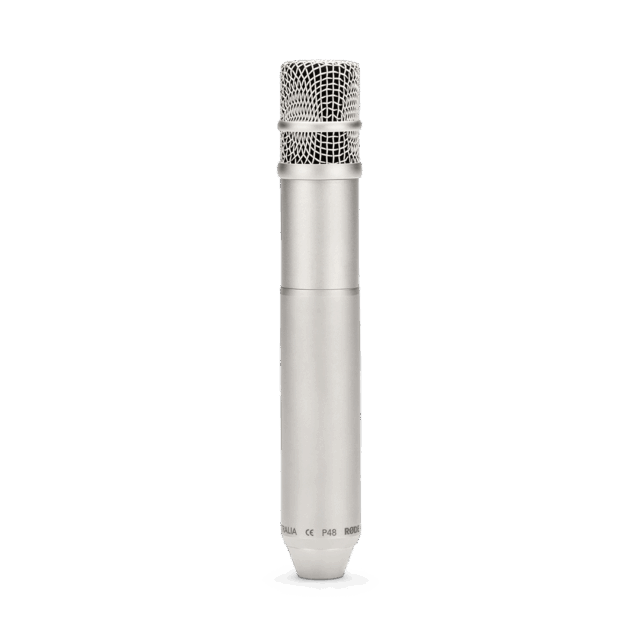

The NT3 is a highly versatile end-address 3/4-inch condenser microphone, offering exceptional detail and clarity across a wide variety of sound sources, including drums, guitar amps, and vocals. Perfect for studio, stage, and location recording, the NT3 can be used on a stand, boompole, or as a handheld microphone. Its rugged all-metal body and durable mesh head make it ideal for both studio environments and fieldwork. The microphone is powered by either P48 phantom power or a 9V battery, providing flexibility for any recording situation.

Key Features:

• Versatile 3/4-inch cardioid condenser microphone
• Full frequency response for detailed recordings
• Internal capsule shock mounting for minimized handling noise
• Can be powered by P48 phantom power or a 9V battery
• 10-year warranty

Specifications:

• Acoustic & Electrical:

  • Acoustic Principle: Pressure Gradient
  • Active Electronics: JFET impedance converter with bipolar output buffer
  • Capsule: 0.75″
  • Polar Pattern: Cardioid
  • Frequency Range: 20Hz – 20kHz
  • Output Impedance: 200Ω
  • Maximum SPL: 140dB SPL
  • Maximum Output Level: 9.5mV (@ 1kHz, 1% THD into 1KΩ load)
  • Sensitivity: -39.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
  • Equivalent Noise Level (A-Weighted): 16dBA
  • Power Requirements: 9V battery, P12, P24, or P48
  • Output Connection: XLR

• Mechanical:

  • Weight: 371g
  • Dimensions (mm): 206 (H) x 32 (W) x 32 (D)
