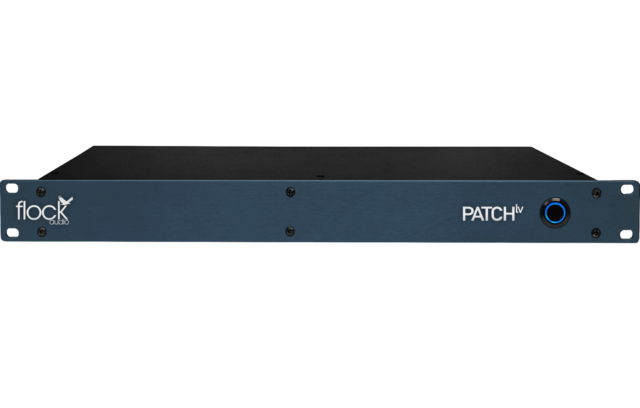

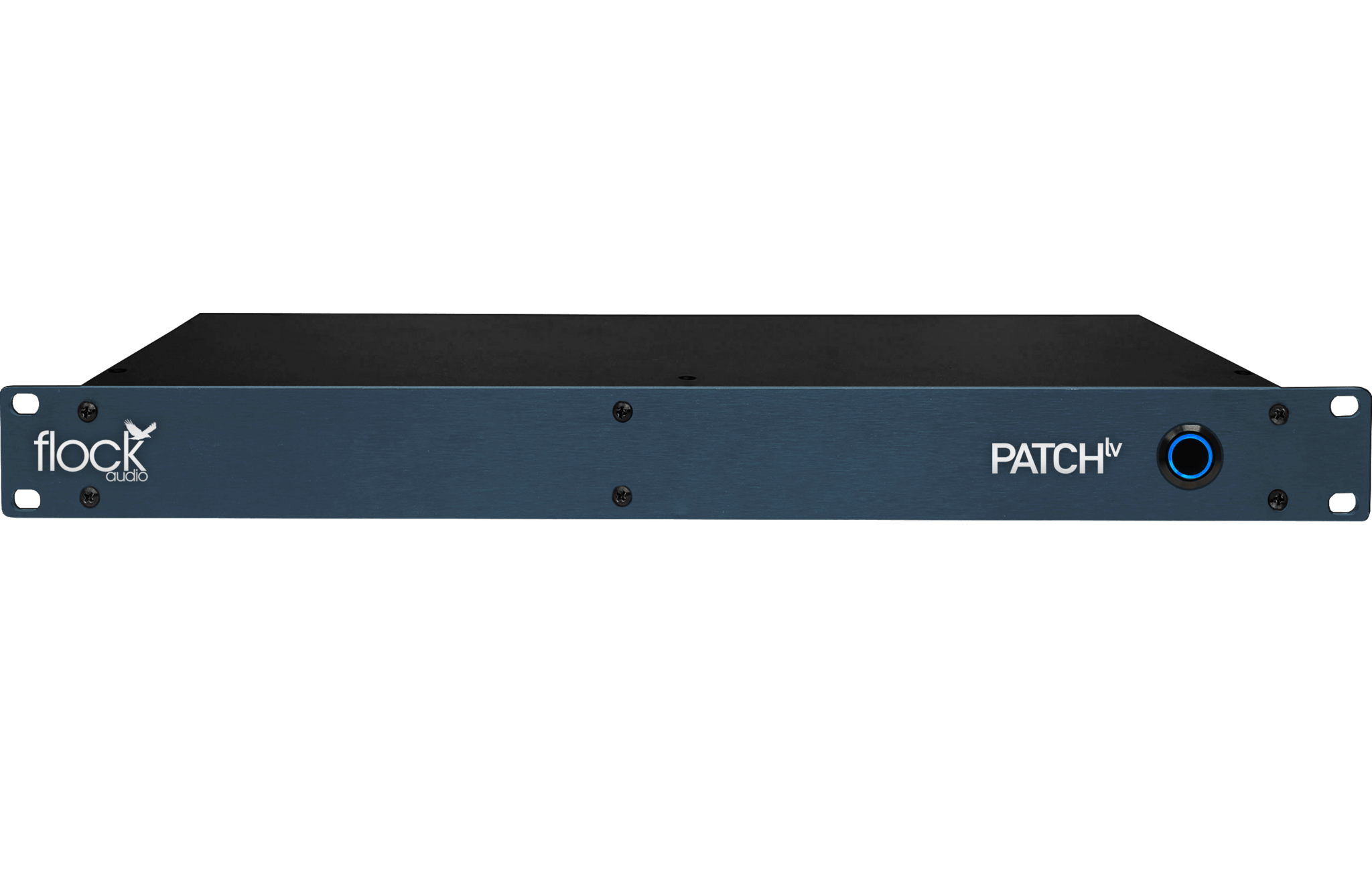

PATCH LV
5,749.00 €
📅 This is a pre-order item. Shipping begins once it arrives in stock.
🚚 Contact us for the exact delivery time.
Guaranteed safe & secure checkout
PATCH LV
5,749.00 €
Description

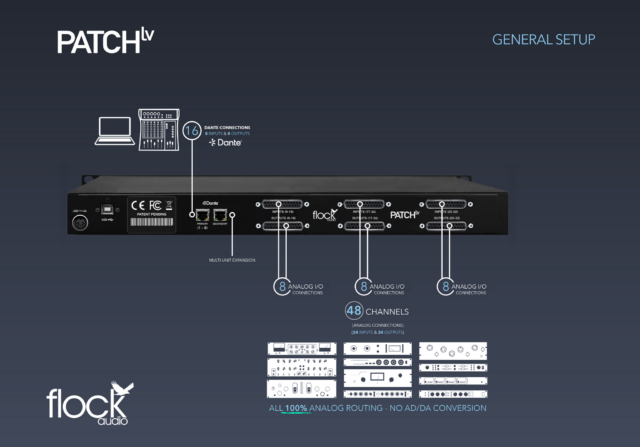

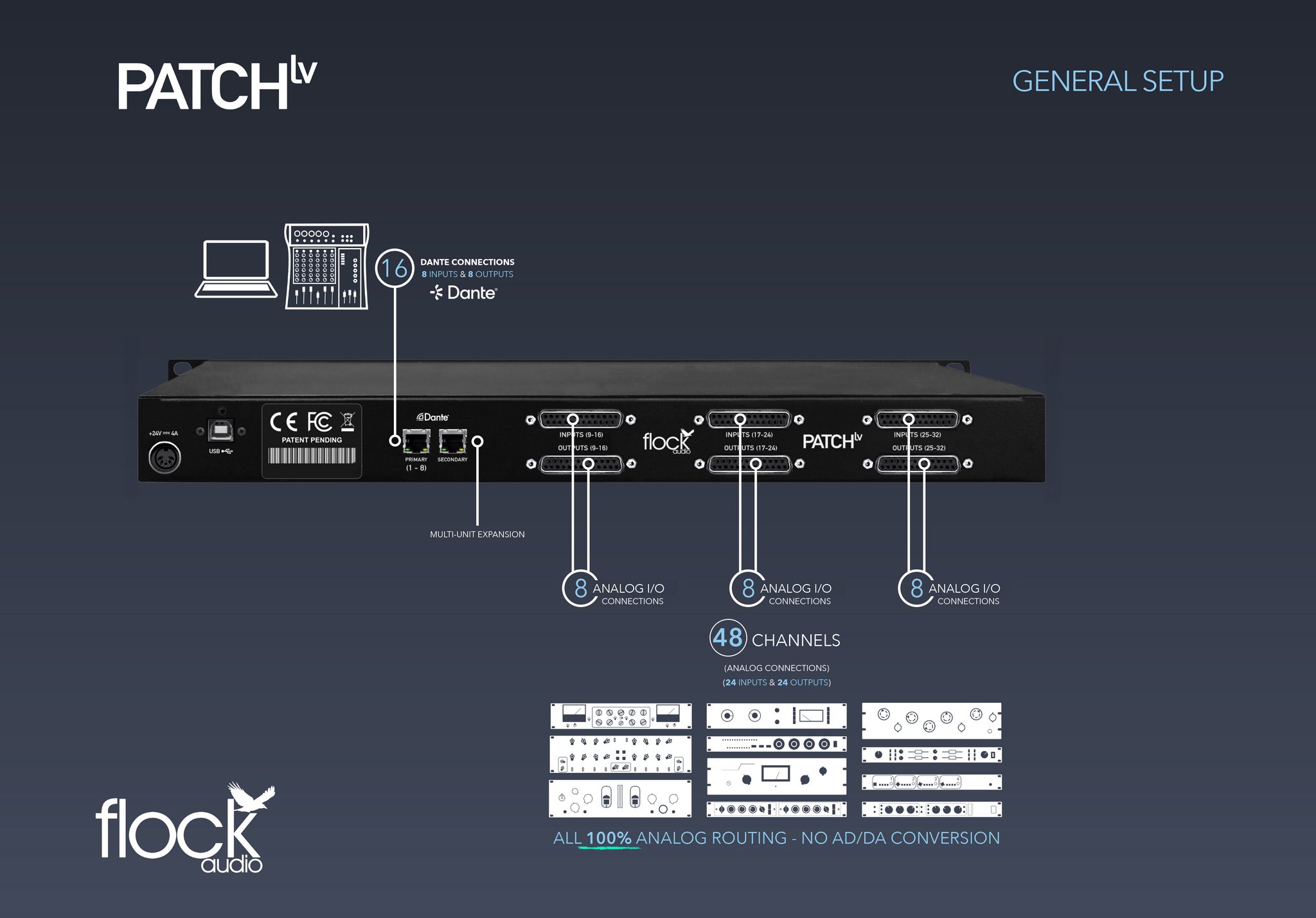

64 Channel Patch Bay with Dante
- 16 Dante channels: 8 inputs and 8 outputs (192 kHz / 32 bits)
- 48 analog channels: 24 inputs and outputs each via DB-25 connection (Tascam)
- For 48 analog channels: purely analog signal path without conversion or latency, with digital control and routing.
- Quickly create, save and restore settings via the software
- Create complex patches without level or impedance changes
- Remote control possible in sleep/wake mode
- Patch App and Patch App DX routing software compatible with Mac OSX, Windows and iOS

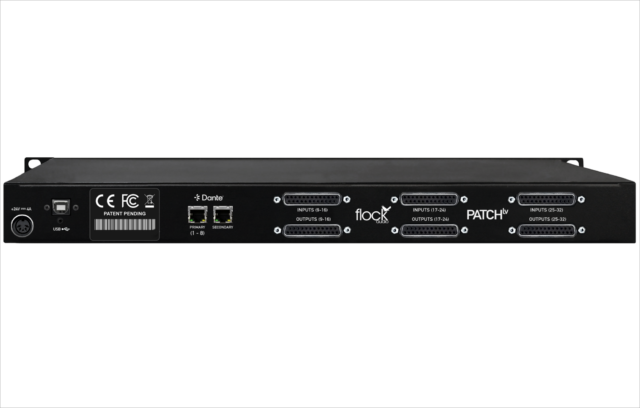

- USB-B connector with lock
- Dante Primary and Secondary Ports
- Dimensions: 19″ / 1 U
- Weight: 6.3 kg
- Includes USB cable
