Portico 542

Description

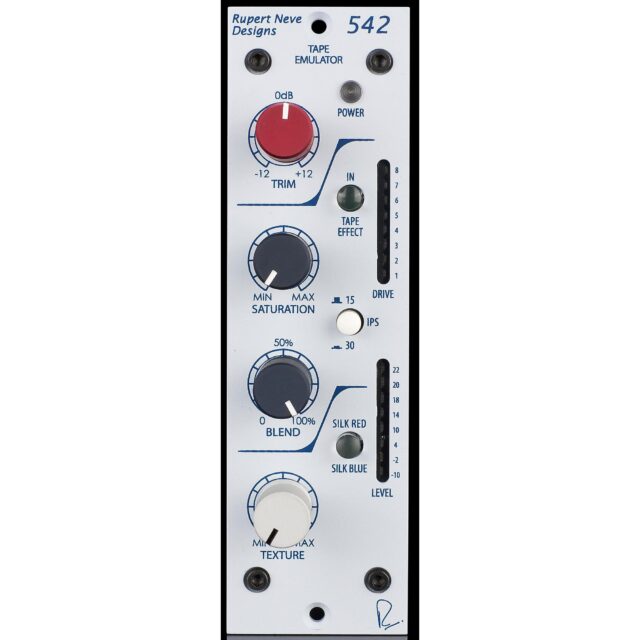

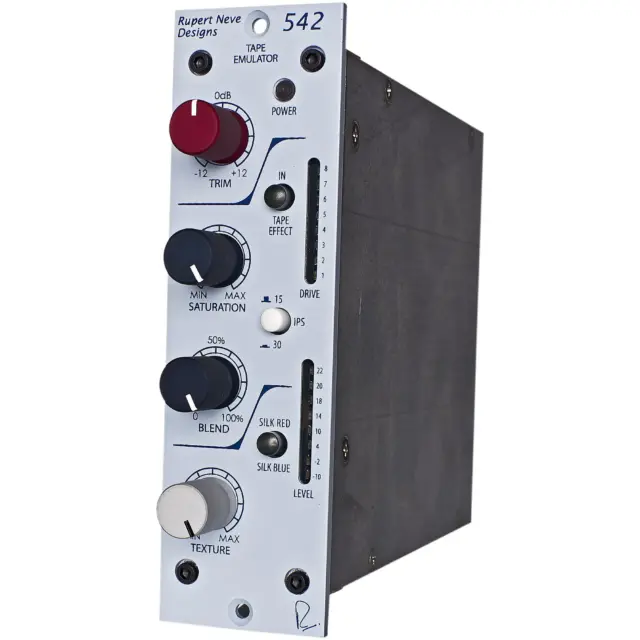

The Rupert Neve Designs Portico 542 is a premium 500-series module designed for professionals seeking exceptional tape emulation and harmonic enhancement. Building on the acclaimed Portico 5042, the 542 adds expanded creative control with innovative features, making it a go-to solution for studio environments of the highest caliber.

Key Features

• True Tape Circuitry: Achieves authentic tape saturation using a magnetic “record head” for natural compression and warmth.
• Soft Clip Function: Tames transients and enhances second-order harmonics for a smooth, musical sound.
• Silk & Texture Control: Fine-tune harmonic content and tonality with three transformer tones, including Red Silk for mid and high-frequency saturation.
• Pre/Post Tape Blend: Adjust the mix of signals for precise control over saturation.
• Adjustable Tape Speeds: Select between 15 IPS and 30 IPS for unique tonal characteristics.
• Flexible Gain Control: +/-12 dB input level adjustment to optimize signal integrity.

Specifications

• Frequency Response: ±0.25 dB from 5Hz to 60kHz; -2 dB @ 120kHz.
• THD+N: Less than 0.0025% at 1kHz, +20 dBu.
• Maximum Output Level: +23.25 dBu.
• Power: Requires 110-125 mA @ ±16V DC from a 500-series rack.
• Noise Performance: Better than -100 dBu unweighted.

Applications

Ideal for adding depth, character, and vintage warmth to any audio source, from vocals to instruments. Perfect for use in professional studios, mixing, and mastering workflows.
