QxG

Description

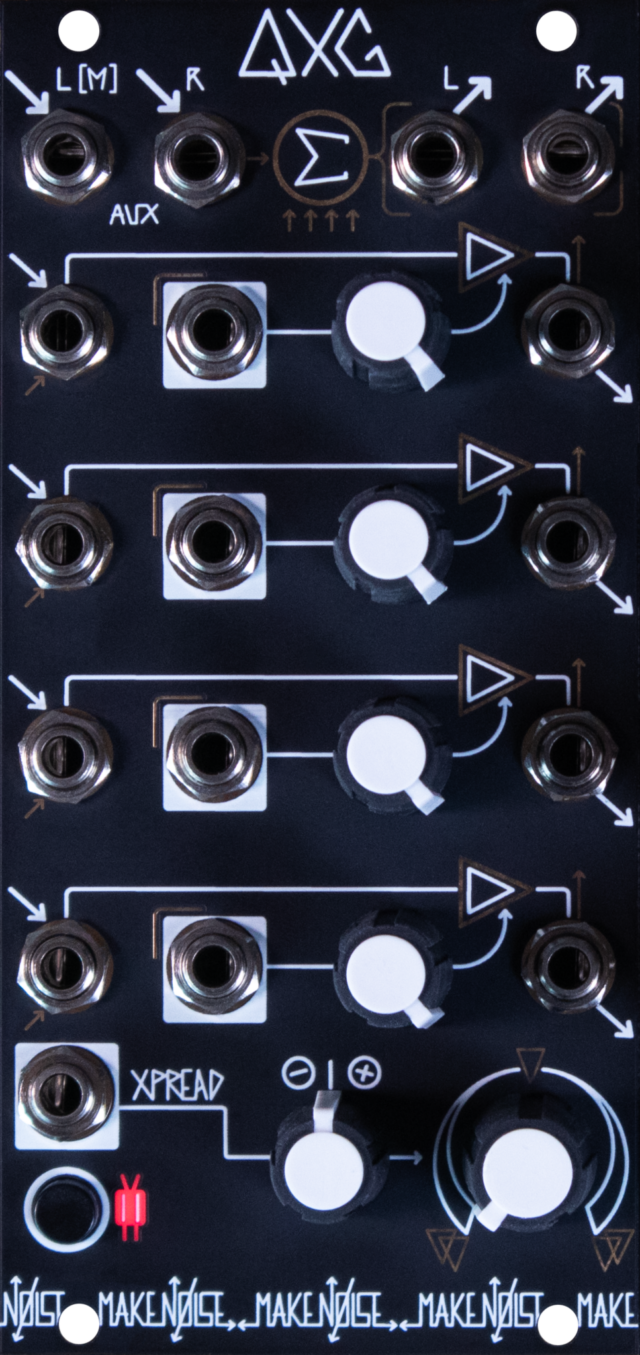

• • The Quad Stereo Gate (QXG) is a four-channel stereo low pass gate and mixer. It features a brand new all-analog, vactrol-free circuit, designed after months of development to capture the character of classic vactrol-based LPGs while offering greater precision and reliability.

    With the Vactrol button, you can switch between:

    • Slow Mode (ON): emulates the natural decay of a vactrol LPG.

    • Fast Mode (OFF): delivers a precise, snappy response while retaining gentle filtering. Perfect for fast, complex modulation sources such as PoliMaths.

    Other features include:

    • Stereo Sum Output with voltage-controllable Stereo Spread for wide spatial mixing.

    • Individual Outputs that remove channels from the Sum when patched.

    • Stereo Auxiliary In for chaining multiple QXGs into larger mixes.

    • Pre-patch headers for seamless integration with PoliMaths and MultiMod.

    • Chain two QXGs with a PoliMaths for immediate 8-channel amplitude control.

    Specifications:

    • Width: 12HP

    • Max Depth (incl. power cable): 43 mm

    • Power: +12V 65 mA / -12V 75 mA

    Part of the New Universal Synthesizer System.
