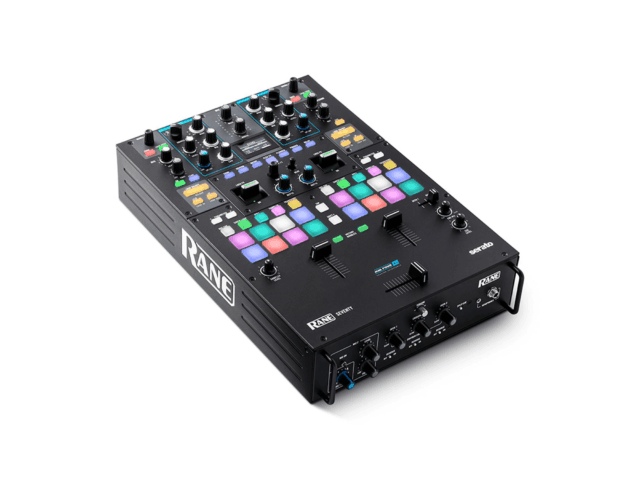

Rane Seventy

Description

2-channel Serato mixer for the Pro-Performance DJ

Built like a tank
The SEVENTY is the latest edition to RANE’s solid steel, Serato battle-ready mixer series. Built from the same high-quality components as the multi world-title winning, SEVENTY-TWO.

Intuitive layout
The SEVENTY gives the most demanding DJ all the tools right where they need them. Instantly select internal Flex FX and Serato FX, dedicated loop control and instant doubles. The SEVENTY also unlocks Serato DJ Pro and Serato DVS.

New MAG FOUR faders
Introducing the brand new contactless MAG FOUR faders. 50% lighter than their predecessors for tighter, faster cuts on the crossfader and upfaders.

FX, loops & Instant Doubles
Radio-style FX buttons give instant access to 6 Flex FX and Serato’s software FX. The dedicated loop sections and Instant Double buttons are intuitively laid out for quick, easy access.

Custom Control
Alongside the 3 new MAG FOUR Faders is the external crossfader tension-adjust control. Lose or tight, customize your winning mixers feel.

Performance pads
16 Akai Professional MPC pads with independent control per deck. Includes Hot Cue, Pitch ‘n Time, Saved Loops, Sampler, Scratch Bank, Roll and Transport control.

Digital Audio

Converters
AKM High Definition Audio; 24-bit PCM, 48 kHz

Digital Signal Processing
32-bit, floating point, double precision

Dynamic Range (A-weighted, unity gain)
ADC: 114 dB
DAC: 114 dB
CD Input to Analog Output: 114 dB
CD Input to USB Output: 114 dB
USB Input to Analog Output: 114 dB

Inputs

• Microphone 1/2 (Combo XLR/1/4″ [6.35 mm] TRS, Mic/Line switchable)
• Analog Gain: 30 dB (Mic), 4.75 dB (Line)
• Maximum Input: 0.126 Vrms (Mic), 2.3 Vrms (Line)
• Gain Trim: Off to +20 dB (unity at center)

Aux Inputs 1/2 (RCA stereo pairs)

• Maximum Input: 4 Vrms
• Dynamic Range (A-weighted): 114 dB

CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)

• CD: Line
• Maximum Input: 4 Vrms
• Dynamic Range (A-weighted): 114 dB
• Phono: RIAA
• RIAA Curve: +0.1/-0.2 dB
• Gain (@ 1 kHz): 30 dB
• Maximum Input (@ 1 kHz): 126 mV

Session Input (RCA stereo pair)

• Maximum Input: 4 Vrms
• Dynamic Range (A-weighted): 114 dB

Outputs

• Main Outputs (XLR)
• Frequency Response: 20 Hz to 20 kHz (± 0.2 dB)
• Maximum Output: 8 Vrms
• THD+N (@ 1 kHz, 4 Vrms): 0.002%

Booth Outputs (1/4″/6.35 mm TRS)

• Frequency Response: 20 Hz to 20 kHz (± 0.2 dB)
• Maximum Output: 8 Vrms
• THD+N (@ 1 kHz, 4 Vrms): 0.002%

Session Outputs (RCA stereo pair)

• Frequency Response: 20 Hz to 20 kHz (± 0.2 dB)
• Maximum Output: 4 Vrms
• THD+N (@ 1 kHz, 2 Vrms): 0.002%

Headphone Outputs (1/4″/6.35 mm and 1/8″/3.5 mm TRS)

• Maximum Output Voltage: 4 V (no load)
• THD+N (@ 1 kHz, 2 Vrms): 0.003%
• Output Power: 96 mW (50 ohms)
• Controls: On/Off muting

General

Display
1.6” OLED (diagonal)

Pads
(16) velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)

Faders
(3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)

Connectors
(2) XLR outputs (Main)
(2) 1/4” (6.35 mm) TRS outputs (Booth)
(4) RCA stereo input pairs (Deck 1–2)
(2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
(1) RCA stereo input pair (Session)
(1) RCA stereo output pair (Session)
(1) 1/4” (6.35 mm) TRS output (Headphones)
(1) 1/8” (3.5 mm) TRS output (Headphones)
(1) 1/4” (6.35 mm) TRS input (Footswitch)
(2) USB Type-A ports (Deck 1–2 USB Controllers)
(2) USB Type-B ports
(1) IEC power cable input

Power
Connection: IEC
Voltage: 100–240 V, 50/60 Hz
Consumption: 30 W

Dimensions (width x depth x height)
11.2” x 17.5” x 4.13”
285 x 445 x 105 mm

Weight
12.3 lbs.
5.6 kg

More info: RANE SEVENTY
