Studio 2 OTG GEN II

Description

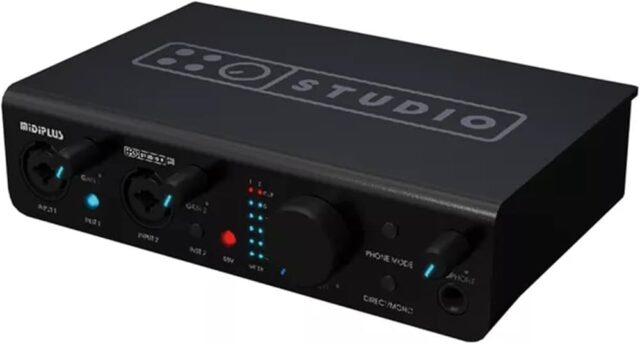

MIDIPLUS Studio 2 OTG GEN II: Compact USB Audio Interface with OTG Support

The MIDIPLUS Studio 2 OTG GEN II is a versatile 2-in/2-out USB audio interface delivering high-quality sound in a compact form factor. With 24-bit/192kHz resolution, OTG support for direct connection to mobile devices, and a handy direct monitoring feature, this interface is perfect for both studio recordings and mobile applications.

Key Features:

• 2 Mic/Line/Hi-Z combo inputs with 48V phantom power

• Support for 24-bit/192kHz audio resolution

• OTG functionality for direct connection to smartphones and tablets

• Direct monitoring with stereo/mono switch

• Independent volume control for headphone and monitor outputs

• 6-segment LED level meter for precise signal monitoring

• Includes USB Type-C cable, 1/4″ to 1/8″ adapter, 1/8″ to 1/8″ TRRS cable, and quick start guide

Technical Specifications:

• Connections: 2 x XLR/TRS combo inputs, 2 x 1/4″ TRS outputs, 1 x 1/4″ headphone output, 1 x 1/8″ phone jack, 1 x OTG port, 1 x USB Type-C port

• Buttons: 2 x Hi-Z switches, 1 x OTG switch, 1 x 48V switch, 1 x mono switch

• Knobs: 2 x input gain controls, 1 x monitor level control, 1 x headphone volume control

• Dimensions: 186 x 116 x 47 mm

• Weight: 0.68 kg

• Compatibility: Windows XP, Vista, 7, 8, 10 and macOS
