Triple Steeple

Description

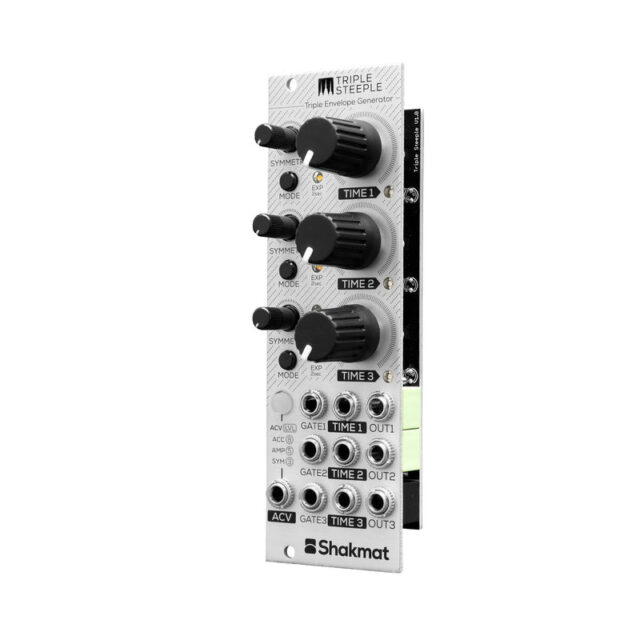

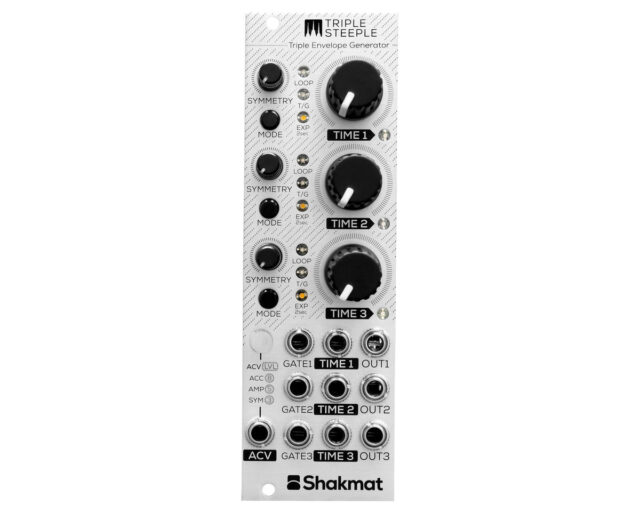

Triple Steeple is a precision-crafted 3-channel envelope generator designed for modular artists who demand control, flexibility, and depth. With dedicated time and symmetry per channel, plus five envelope modes—triggered, gated, looping, gated looping, and clock-synced—it’s a modulation powerhouse that adapts to your patching philosophy.

Linear and exponential response curves are selectable per channel, while a versatile CV input allows for dynamic applications like accent or VCA-style shaping. Normalized inputs and outputs streamline internal routing, while state retention ensures your patching intentions remain intact after power cycles. Built with skiff-friendly dimensions and equipped with tactile DJ TechTools-style rubber knobs for confident tweaking.

A deeply capable tool, designed for modular users who sculpt modulation with intention.

Key Features

• Triple-channel envelope generator with independent time and symmetry control

• Five envelope modes: Trigger, Gate, Loop, Gated Loop, Clocked Loop

• Linear or exponential curve response selectable per channel

• Assignable CV input for advanced modulation or accent control

• Input/output normalization for smoother patching workflows

• State retention on power-down

• Compact 8HP skiff-friendly design

• High-grip rubberized DJ TechTools-style knobs

Technical Specifications

• Width: 8HP

• Depth: 21 mm

• Power: +12V: 50 mA / -12V: 8 mA

Applications

• Shaping evolving modulations or percussive articulations

• Live performance or precision envelope duties in complex patches
