VastWave
389.00 €
Description

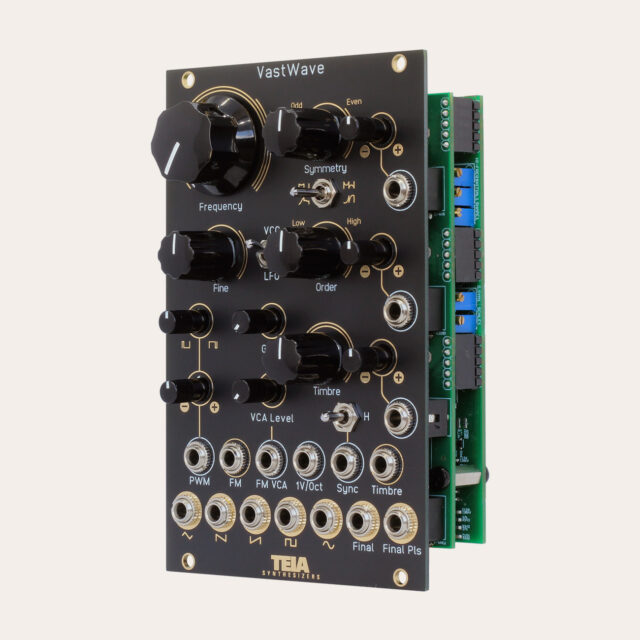

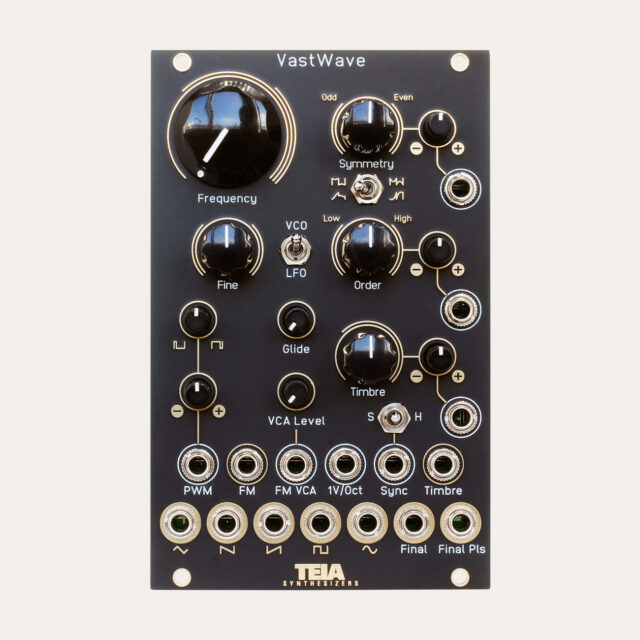

VastWave is a complex analog Oscillator with advanced waveshaping capabilities that invites new textural and harmonic exploration beyond subtractive synthesis principles.
Crossfading between harmonically rich folded waveforms and waveforms with Odd/Even harmonics, the VastWave waveshaper expands on the Principal Oscillator heritage, bringing an additional set of waveforms with Odd and Even harmonics and a pulse waveform derived from the Waveshaper’s Final output stage.
Furthermore the linear FM input has a dedicated VCA for external FM amplitude modulation and an on board linear Glide delivers a more musical approach to this classic feature.
Features:
- Voltage controlled complex waveshaping.
- Triangle core.
- FM input with voltage controlled amplitude for FM amplitude modulation.
- On board linear Glide.
- Voltage controlled Pulse-width modulation for Pulse and Final Pls waveforms.
- Modern temperature and tuning stability.
- High Frequency (VCO) or Low Frequency (LFO) operation.
- External Timbre input with sine wave normalization if no external source is patched.
- Attenuator/inverter knobs on all voltage controlled inputs.
- Inverted or double Sawthooth waveform (selectable by jumper).
Specs:
- Width: 16HP
- Depth: 33mm
- Power consumption: ###mA +12 / ###mA -12
- Eurorack Format
- Doepfer power connection
Check VastWave manual here.
