VCO
139.00 €
📅 This is a pre-order item. Shipping begins once it arrives in stock.
🚚 Contact us for the exact delivery time.
Guaranteed safe & secure checkout
VCO
139.00 €
Description

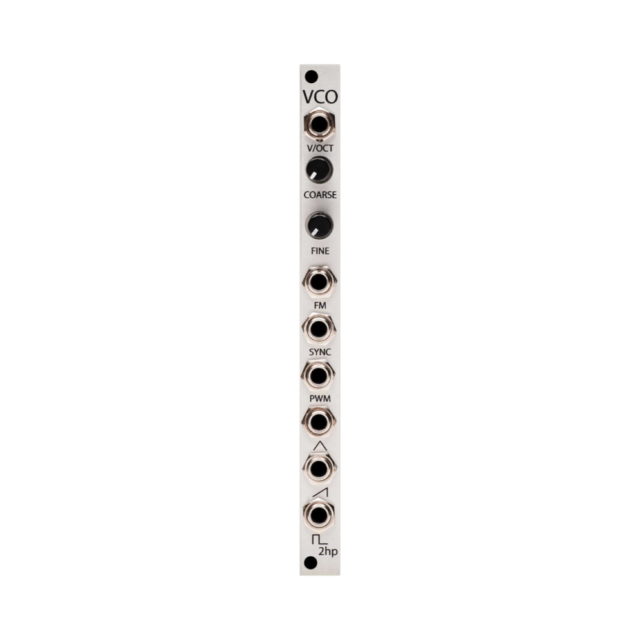

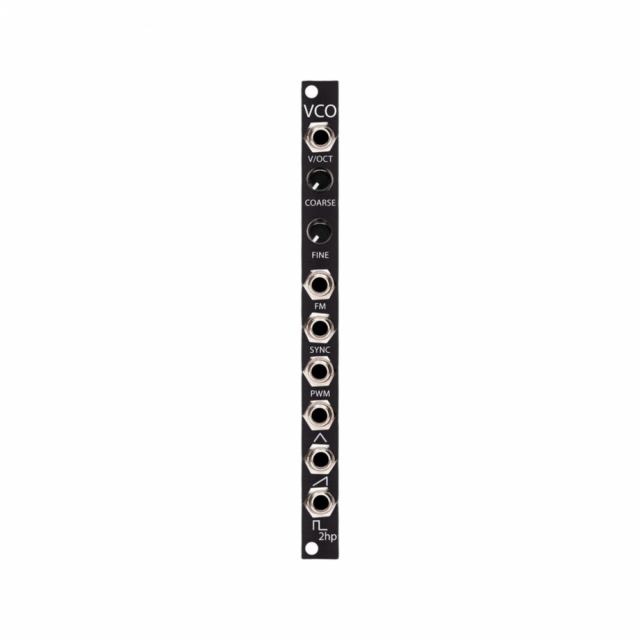

VCO is an analog voltage controlled oscillator based on the reissue of the legendary Curtis CEM3340 IC.
Many believe this chip to be the greatest sounding analog oscillator of all time. VCO features simultaneous triangle, sawtooth, and square wave outputs with linear FM, hard sync, and PWM capabilities. Accurate 1V/Oct tracking across 10+ octaves provides a huge frequency range for melodies or dramatic sweeps.
Add some analog warmth to your patches with VCO.
- CEM3340 based architecture
- Analog VCO
- 10+ octave range with accurate 1V/Oct tracking
- PWM control
Specifications
- Width: 2HP
- Depth: 42mm (Skiff Friendly)
- Power: +12V: 27mA, -12V: 24mA
