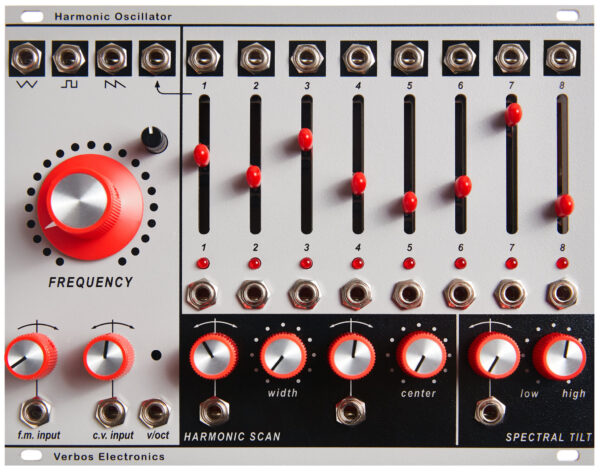

Verbos Electronics Harmonic Oscillator

For the first time in Eurorack, this oscillator module provides outputs for  the first 8 harmonics as sine waves. Also included are triangle, saw, square waves. A voltage controlled mixer with various methods of address allows the user to scan, tilt and mix the harmonics from both panel and external voltage control.

It is built on a discrete, all analog triangle core with an old school discrete transistor exponential converter. It has inputs for linear and exponential FM, the exponential with a reversing attenuator. Of course there’s a 1 volt/octave trimmed CV input as well.

Manual you can find here: MANUAL

• 32HP

• 120mA +12, 90mA -12
