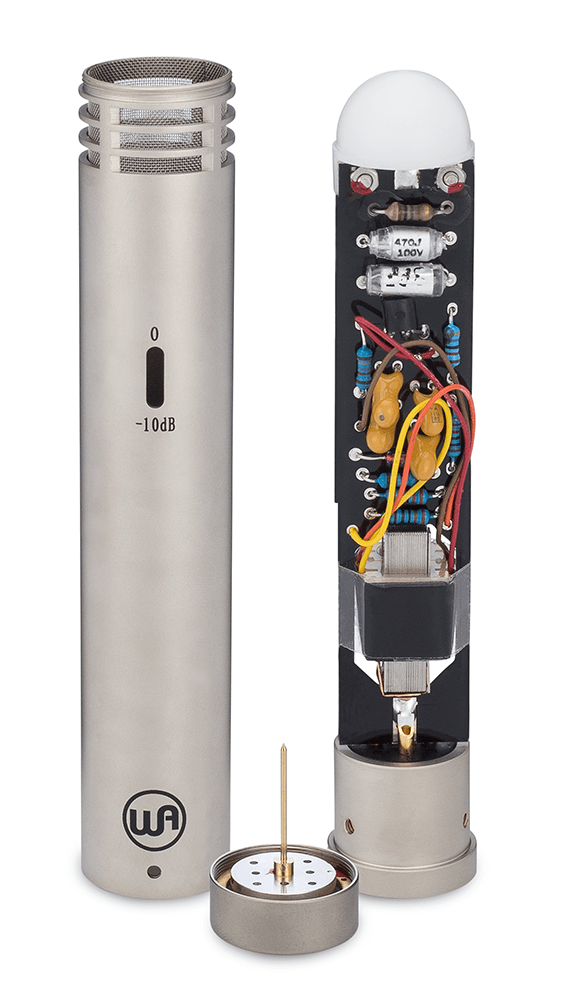

The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer,  polystyrene and Wima capacitors and a Fairchild FET.  The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources.

The WA-84 has a very LARGE sound for its small size and uniquely uses a heavy Nickel CineMag transformer in its signal path to warm up and ENLARGE sound sources.  Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease of design and a lower-cost manufacturing process.  When designing the WA-84 we chose to go the extra mile and tackle a more boutique design known for its crystal clear, yet smooth, LARGE sound.

We are proud to offer something special to the market-place by using large core transformer technology (CineMag USA) in a small diaphragm condenser microphone package.  The result is a circuit that we feel sounds absolutely gorgeous and goes the extra mile in terms of signal integrity and smooth boutique tone.

Warm Audio WA-84 Small-diaphragm Condenser Microphone Features:

• Cardioid polar pattern
• Fully discrete signal path
• Vintage reproduction capsule
• CineMag USA Transformer
• 48V phantom powered
• Frequency Range: 20Hz–20kHz
• Sensitivity: -39dB or 11mV/Pa @ 1kHz
• Output Impedance: 200Ω
• Rated Load Impedance: ≥1kΩ
• Switchable Pad: -10dB
• Maximum SPL: 123/133dB @ 1kHz, 0.5% THD, 0/-10dB
• S/N Ratio: 78dBA (IEC651)
• Equivalent noise: 16dBA (IEC651)
• Dynamic range: 107dBA (IEC651)
• Connector: 3-pin gold-plated XLR
• Includes microphone, cardioid capsule, shockmount, mic clip, windscreen, carrying case
