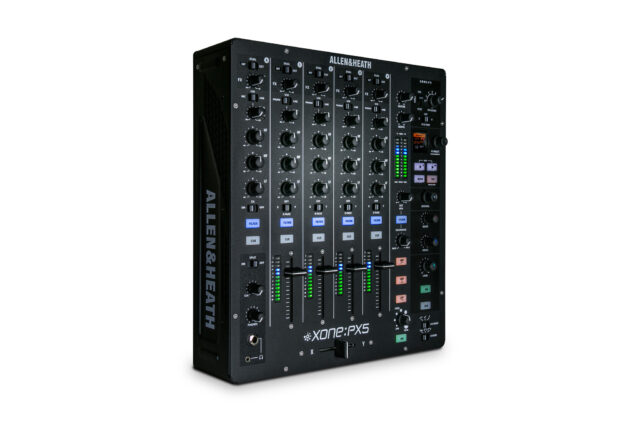

Combining the signature warm analogue Xone sound with class leading digital connectivity, Xone:PX5 breathes life and soul into electronic music performance. The built-in FX technology offers new levels of manipulation with our new Xone:Xcite FX suite of performance-focused delays, reverbs, modulators, flangers and distorters which are all assignable through simple hands-on control for fine-tuning the FX and expressing the DJ’s inner creativity.
Technical Specs:
Type Analog
Channels 4 + 1
EQÂ 3-band / Total Kill (CH 1-4 + CH A)
USB Soundcard 20 Channel (10 in / 10 out) USB2 / Class Compliant 24bit / 96kHz 1 x MIDI IN 1 x MIDI Out

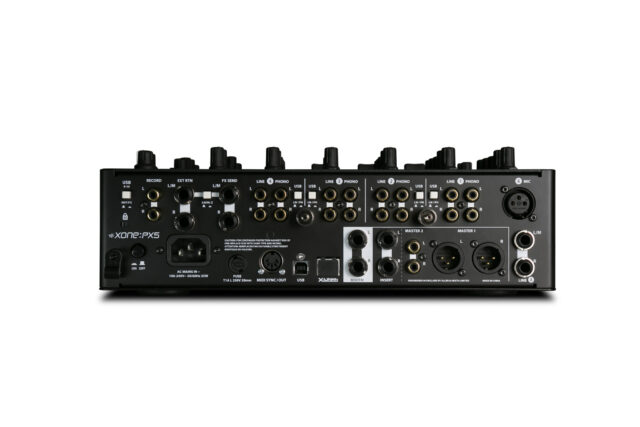

Line Inputs 4 x RCA (CH 1-4) 1 x 1/4″ TRS (CH A) Mono/Stereo
Phono Inputs 4 x RCA (CH 1-4) LN/PH Switch for DVS
USB Inputs 5 x USB (CH 1-4 + CH A)
Mic Input 1 x XLR
Master Output 1 x XLR (Balanced)
Master 2 Output 1 x RCA (Un-balanced)
Booth Output 1 x 1/4″ TRS
Record Output 1 x RCA (Un-balanced)
Master Insert 1 x 1/4″ TRS
MIDI Sync/Out 1 x 5-Pin DIN DIN Offset Control
Send/Return I/O 1 x 1/4″ TRS Send 1 x 1/4″ TRS Return 1 x LN/Hi-Z Switch
Internal Xone:FXÂ Yes
Hybrid FX Mode Yes (Internal < Dual > External)
FX Send 1 x Pre/Post Selectable (CH 1-4 + CH A)
Filter 1 x VCF Filter HPF / BPF / LPF Adjustable Frequency & Resonance Assignable CH 1-4 + CH A + External Return
X-Link 1 x RJ45

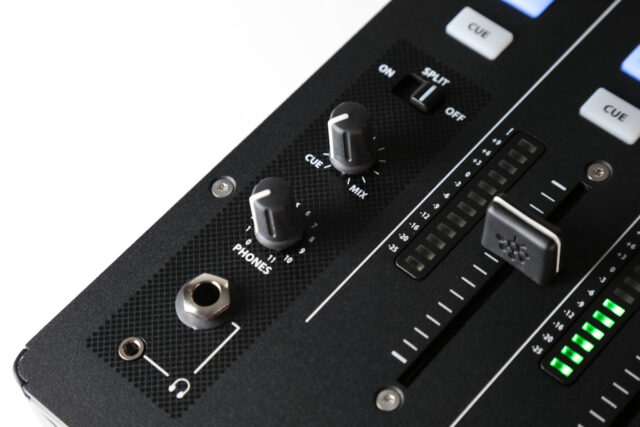

Headphones 1 x 1/4″ 1 x 3.5mm Split Cue Monitoring
